The product image may slightly differ as it is representative of the family and not the model.

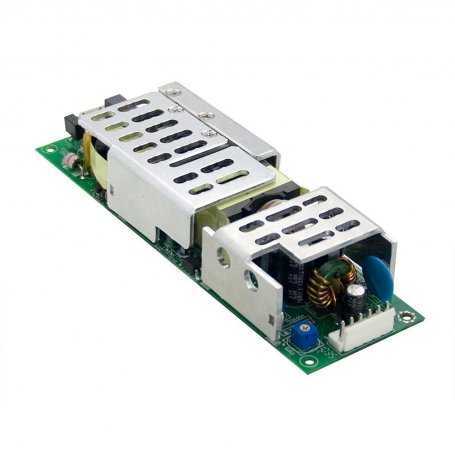

HLP-80H-54 Meanwell - LED Power Supply CC - 80W 1500mA - Dimmable
Description
- LED Power Supply MeanWell
- Constant Current DC
- Input: 90~305VAC
- Power: 80W
- DC Output Voltage: 32.4~54Vdc
- Output Current: 1500mA
- LED Power Supply MeanWell
- Constant Current DC
- Input: 90~305VAC
- Power: 80W
- DC Output Voltage: 32.4~54Vdc
- Output Current: 1500mA
- Active PFC
- Protection:
Short Circuit
Overload
Overvoltage
Overheating - Class II
- Adjustable Output Current
- Dimming: PWM - 1/10Vdc - Resistance
- Designed for LED Lighting
- Open Frame
- Warranty: 3 years
Data sheet
- Dimming LED
- 1/10V
PWM
Resistor (Ohm) - Output Regulation Type
- Constant Current / CC
- Output Voltage VDC
- 54
- Input Voltage VAC
- 90~295VAC
90~295VAC - Operating Temperature
- -40°C / +70°C
- Power W
- 80
- PFC
- Yes
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 90%
- Dimensions
- 167 x 53 x 29.5 mm
- Output Current mA
- 1500
- Output Current A
- 1.5
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help! Could you please provide the text in Italian that you would like me to translate?
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 12/0. [45.0.NO.]/LTT-3
- List Price
- 52.0
