HVG-240-30B  HVG-240-30B Alimentatore LED MeanWell - CV/CC - 240W / 30V / 8000mA - Dimmerabile  Mean Well  Alimentatori LED
zoom_out_map
chevron_left chevron_right

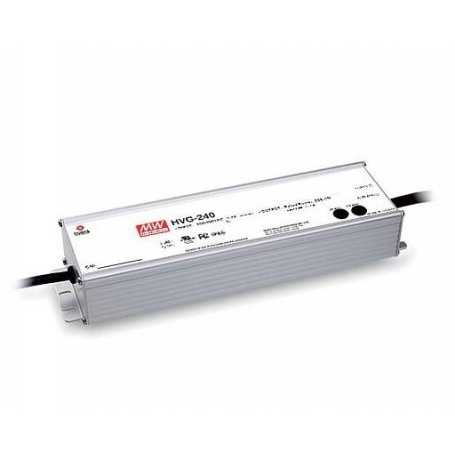

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

HVG-240-30B Meanwell - LED Power Supply CV/CC - 240W 30V 8000mA - Dimmable

€89.88 Tax excluded

€89.88 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €89.88 €89.88
5 €88.08 €440.41
10 €86.28 €862.85
20 €84.49 €1,689.74
Description
  • MeanWell LED Power Supply
  • Constant Voltage + Constant Current CV+CC
  • Input: 180~528VAC
  • Power: 240W
  • Output Voltage: 30Vdc
  • Output Current: 8000mA
  • Dimming: PWM - 0/10Vdc - Resistance
  • MeanWell LED Power Supply
  • Constant Voltage + Constant Current CV+CC
  • Input: 180~528VAC
  • Power: 240W
  • Output Voltage: 30Vdc
  • Output Current: 8000mA

  • IP67
  • Dimming: PWM - 0/10Vdc - Resistance
  • Integrated active PFC
  • Protections: Short circuit / Overload / Overvoltage / Overheating
  • Designed for LED Strips and Outdoor Lighting
  • Class II
  • Warranty: 5 years
Data sheet
Mean Well
HVG-240-30B
New
7438645884823
Dimming LED
0/10V
PWM
Resistor (Ohm)
Output Regulation Type
Constant Current / CC
Constant Voltage / CV
Output Voltage VDC
30
Input Voltage VAC
190~528VAC
190~528VAC
Operating Temperature
-40°C / +90°C
Power W
240
IP Protection Grade
IP67
Mechanical Mounting Format
Perforated Metal Container
Efficiency
92.5%
Dimensions
254 x 68 x 38.8 mm
Output Current mA
8000
Output Current A
8
Input Connector
Cable
Output Connection
Wired
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
Could you please provide more context or clarify what "HVG" stands for? It appears to be an acronym or abbreviation, and its meaning could vary depending on the context.
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
121.1
