HVG-65-36B  HVG-65-36B Alimentatore LED MeanWell - CV/CC - 65W / 36V / 1810mA - Dimmerabile  Mean Well  Alimentatori LED
zoom_out_map
chevron_left chevron_right

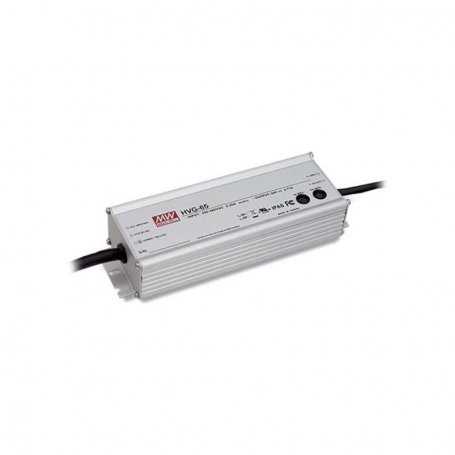

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

HVG-65-36B Meanwell - LED Power Supply CV/CC - 65W 36V 1810mA - Dimmable

€61.60 Tax excluded

€61.60 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €61.60 €61.60
5 €60.37 €301.84
10 €59.14 €591.36
20 €57.90 €1,158.08
Description
  • LED MeanWell Power Supply
  • Constant Voltage + Constant Current CV+CC
  • Input: 180~528VAC
  • Power: 65W
  • Output Voltage: 36Vdc (21.6~36Vdc)
  • Output Current: 1810mA

  • IP67
  • Dimming: 0/10Vdc - PWM - Resistance
  • Integrated Active PFC
  • Class II
  • Warranty: 5 years
Data sheet
Mean Well
HVG-65-36B
New
7438645885431
Dimming LED
Wired
Led Dimming (interface)
Wired
Output Regulation Type
Constant Current / CC
Constant Voltage / CV
Output Voltage VDC
36
Input Voltage VAC
190~528VAC
190~528VAC
Operating Temperature
-40°C / +80°C
Power W
65
IP Protection Grade
IP67
Mechanical Mounting Format
Perforated Metal Container
Efficiency
89.5%
Dimensions
189 x 61.5 x 36.8 mm
Output Current mA
1810
Output Current A
181
Input Connector
Cable
Output Connection
Wired
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
Could you please provide more context or clarify what "HVG" stands for? It appears to be an acronym or abbreviation, and its meaning could vary depending on the context.
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
83.0
