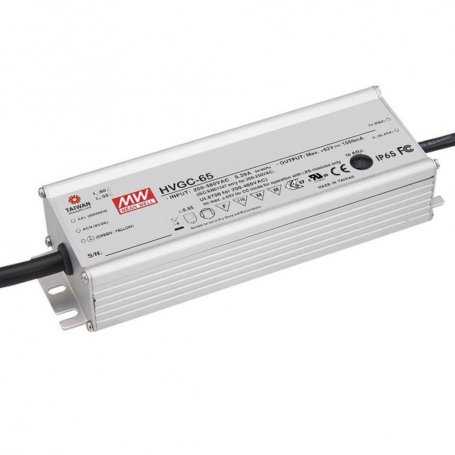

HVGC-65 Meanwell LED Power Supply 65W Constant Current DC Currents 350mA 500mA 700mA 1050mA
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

HVGC-65 Meanwell LED Power Supply 65W Constant Current DC Currents 350mA 500mA 700mA 1050mA

€61.60 HVGC-65-350A
€58.10 HVGC-65-500A
€58.10 HVGC-65-700A
€58.10 HVGC-65-1050A
€58.10 HVGC-65-350B
€58.10 HVGC-65-500B
€58.10 HVGC-65-700B
€58.10 HVGC-65-1050B

€61.60 Tax excluded

€61.60 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €61.60 €61.60
5 €60.37 €301.84
10 €59.14 €591.36
20 €57.90 €1,158.08
Description

Led Power Supplies Mean Well series HVGC-65 Dimmable, power 65Watt, output currents 350mA, 500mA, 700mA, 1050mA

The LED power supplies Mean Well of the HVGC-65 series are entry-level products, with a 5-year warranty, protected by a sturdy metal structure.

The HVGC-65 series has a constant current and high voltage output mode, has an input voltage range of 180-528VAC and offers models with nominal currents between 350mA and 1050mA.
The design of the metal housing and the level of IP67 / IP65 protection allows this series to adapt to both internal and external applications.

The HVGC-65 series is equipped with various function options, such as dimming methodologies, to provide optimal design flexibility for the LED lighting system.

Features:

  • MeanWell LED Power Supply
  • Constant Current CC Output Mode
  • Metal housing with class I design
  • IP67 / IP65 protection degree for indoor or outdoor installations
  • Typical life>50000 hours
  • Built-in active PFC function
  • Function options: adjustable output via potentiometer; 3 in 1 Dimming (dim-to-off); Timer dimming
  • Protections from: short circuit, overvoltage and overheating
  • Dimensions: 189x61.5x36.8mm
  • Warranty: 5 years

Applications:

  • LED street lighting
  • LED lighting

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main Technical Specifications

MODELHVGC-65-350HVGC-65-500HVGC-65-700HVGC-65-1050
Output Type Constant Current / CC
Nominal Output Current 350mA 500mA 700mA 1050mA
Power (Nominal) 65.1W 65W 65.1W 65.1W
Efficiency  90% 90.5% 90.5% 90%
Input Voltage Range 180 ~ 528VAC
Type A Io adjustable via integrated potentiometer
Type B 3 in 1 dimming function (0-10 VDC signal and resistor, 10V PWM)
Type AB Io adjustable via built-in 3 in 1 dimming function (0-10VDC signal and resistor, 10V PWM)
Type D Timer dimming
Dimmable YES
Operating Temperature

-40 ~ +80 °C

PFC YES
Dimensions 189x61.5x36.8mm
Protection Degree IP67 / IP65
Certifications CE, CB, EAC, FCC
For purchases and samples CONTACT US

Also see:

Download the LED power supply catalogs in the attachments tab.


Discover more information on

Data sheet
Mean Well
HVGC-65-350A
New
0 Items
7438645898363
Output Regulation Type
Constant Current / CC
Input Voltage VAC
190~528VAC
190~528VAC
Operating Temperature
-40°C / +80°C
Rating
453
Power W
65
PFC
Yes
IP Protection Grade
IP65
IP67
Warranty
5 Years
Mechanical Mounting Format
Closed Metal Container
Efficiency
90.5%
Dimensions
189x61.5x36.8mm
Output Current mA
350
500
700
1050
Output Current A
0.5
0.7
0.35
1.05
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 1
Certifications
FCC
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
It seems like "HVGC" is an acronym or a specific term that may not have a direct translation. Could you provide more context or specify the meaning of "HVGC" in the text? This will help in providing a more accurate translation.
