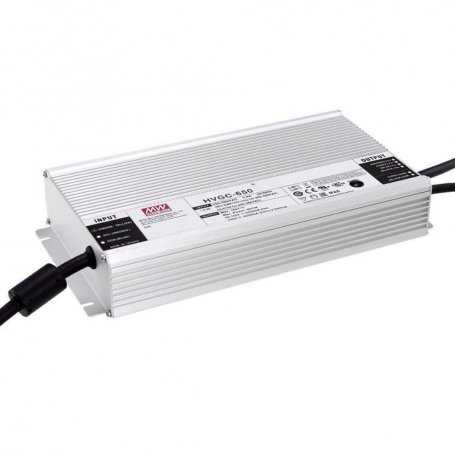

HVGC-650 Meanwell LED Power Supply 650W Constant Current DC Currents 2800mA 4200mA 5600mA 11200mA
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

HVGC-650 Meanwell LED Power Supply 650W Constant Current DC Currents 2800mA 4200mA 5600mA 11200mA

€273.07 HVGC-650-L-AB
€257.60 HVGC-650A-L-AB
€257.60 HVGC-650-M-AB
€257.60 HVGC-650A-M-AB
€257.60 HVGC-650-H-AB
€257.60 HVGC-650A-H-AB
€257.60 HVGC-650-U-AB
€257.60 HVGC-650A-U-AB

€273.07 Tax excluded

€273.07 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €273.07 €273.07
5 €267.61 €1,338.04
10 €262.15 €2,621.47
20 €256.69 €5,133.72
Description

Led Power Supplies Mean Well series HVGC-650 Dimmable, power 650Watt, output currents 2800mA, 4200mA, 5600mA, 11200mA

LED power supplies Mean Well of the HVGC-650 seriesThese are entry-level products, with a 5-year warranty, protected by a sturdy metal structure.

The series HVGC-650It has a constant current and high voltage output mode, it has an input voltage range from 180-528VAC and offers models with nominal currents ranging from 2800mA to 11200mA.
The design of the metal case and the IP67 protection level allow this series to adapt to both internal and external applications.

The seriesHVGC-650It is equipped with various function options, such as dimming methodologies, in order to provide optimal design flexibility for the LED lighting system.

Features:

  • MeanWell LED Power Supply
  • Output in Constant Current CC mode
  • Class I design metal case
  • Surge protection with 8KV / 4KV
  • IP67 protection degree for indoor or outdoor installations
  • Typical duration>50000 hours
  • Active PFC function built-in
  • Optional auxiliary DC output
  • Function options: adjustable output via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
  • Protection from: short circuit, overvoltage and overheating
  • Dimensions:280x144x48.5mm
  • Warranty: 5 years

Applications:

  • LED street lighting
  • LED lighting

Our vote:

  • Reliability
  • Price
  • Characteristics
    • [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.

Main technical specifications

MODELHVGC-650-LHVGC-650-MHVGC-650-HHVGC-650-U
Type of exit Constant Current / CC
Nominal Output Current

2800mA

4200mA 5600mA 11200mA
Power (Rated) 649.6W 651W 649.6W 649.6W
Efficiency 95% 95% 95% 95.5%
Input voltage range 180 ~ 528VAC
Type AB
Standard constant power output with 3 in 1 dimming function (0-10VDC signal and resistance, 10V PWM) and integrated potentiometer.
Type Dx Timer dimming
Type D2 Dimming of the integrated smart timer and programmable function
Type DA DALI control technology with adjustable Io via integrated potentiometer
Dimmable YES
Working temperature

-40 ~ +85 °C

PFC YES
Dimensions 280x144x48.5mm
Protection Degree IP67
Certifications CE, CB, EAC, FCC
For purchases and sampling CONTACT US

See also:

Download the LED power supply catalogs in the attachments tab.


Discover more information about

Data sheet
Mean Well
HVGC-650-L-AB
New
0 Items
0402108704917
Output Regulation Type
Constant Current / CC
Input Voltage VAC
190~528VAC
190~528VAC
Operating Temperature
-40°C / +85°C
Rating
453
Power W
650
PFC
Yes
IP Protection Grade
IP67
Warranty
5 Years
Mechanical Mounting Format
Closed Metal Container
Efficiency
95.5%
Dimensions
280x144x48.5mm
Output Current mA
2800
4200
5600
11200
Output Current A
2.8
4.2
5.6
11.2
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 1
Certifications
FCC
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
It seems like "HVGC" is an acronym or a specific term that may not have a direct translation. Could you provide more context or specify the meaning of "HVGC" in the text? This will help in providing a more accurate translation.
