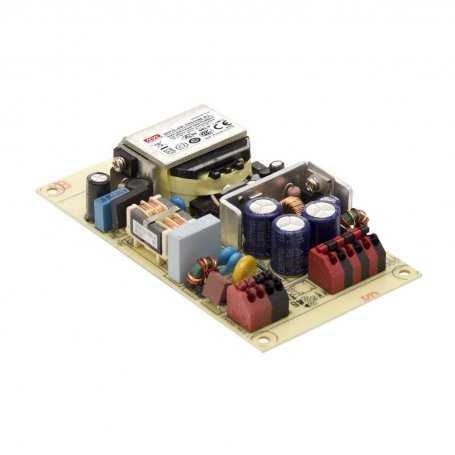

IDPC-45-500DA MeanWell Power Supply - CC - 45W 500mA DALI

€25.06 Tax excluded

€25.06 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €25.06 €25.06
5 €24.56 €122.79
10 €24.06 €240.58
20 €23.56 €471.13
Description

End-Of-Life Product, replaced by PLP-60

  • MeanWell Power Supply
  • Constant Current CC
  • Power: 45W
  • Input: 90~295VAC
  • DC Output Voltage: 54~90Vdc
  • Output Current: 500mA
  • Dimming 2 in 1 (0~10Vdc & 10V PWM)
  • MeanWell Power Supply
  • Constant Current CC
  • Power: 45W
  • Input: 90~295VAC
  • Output DC Voltage: 54~90Vdc
  • Output Current: 500mA
  • Dimming 2 in 1 (0~10Vdc & 10V PWM)

  • Size: 120 x 66.5 x 25 mm
  • Open Frame
  • Built-in active PFC
  • Warranty: 3 years
Data sheet
Mean Well
IDPC-45-500DA
New
7438645886247
Dimming LED
Dali
Led Dimming (interface)
Dali
Output Regulation Type
Constant Current / CC
Input Voltage VAC
90~295VAC
90~295VAC
Power W
45
PFC
Yes
IP Protection Grade
IP20
Warranty
3 Years
Mechanical Mounting Format
Open Frame
Efficiency
85%
Dimensions
120 x 66.5 x 25 mm
Output Current mA
500
Output Current A
0.5
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
IDPC
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
33.7
