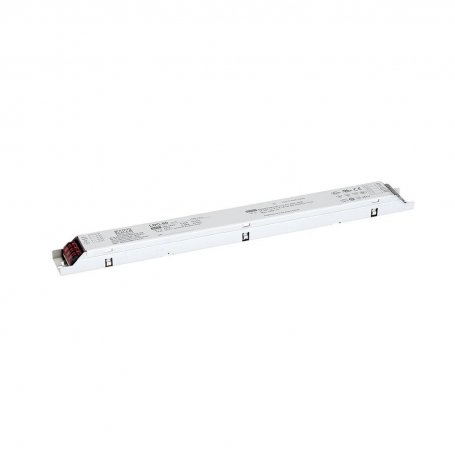

LDC-80 - Meanwell - DC LED Power Supply - 80W 700mA
Description
- MeanWell LED Power Supply
- Power: 80W
- Output Voltage Range: 27~56Vdc
- Output Current: 700~2100mA (700mA default)
- Input Voltage: 180~295VAC
- Constant Power
- Plastic Encapsulated
- Built-in active PFC
- Class II
- No-load / Stand-by consumption
- Selectable output current
- Warranty: 5 years
- MeanWell LED Power Supply
- Power: 80W
- Output Voltage Range: 27~56Vdc
- Output Current: 700~2100mA (700mA default)
- Input Voltage: 180~295VAC
- Constant Power
- Plastic encapsulated
- Built-in active PFC
- Class II
- Standby / Stand-by Consumption <0.5 watt
- Selectable current output
- Warranty: 5 years
Data sheet
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 190~295VAC
190~295VAC - Output Voltage Range
- 27~56V
- Power W
- 80
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 360 x 30 x 21 mm
- Output Current mA
- 700
- Output Current A
- 0.7
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
- LDC
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 41/0. [164.0.NO.]/LTT-3
- List Price
- 49.0
