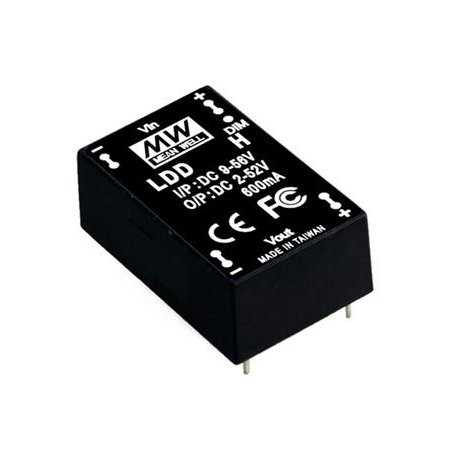

The product image may slightly differ as it is representative of the family and not the model.
LDD-300H - Meanwell - DC-DC Converter - 15W 300mA - Input 12VDC/24VDC/48VDC
Description
End-Of-Life Product - Contact us for an alternative model
- MeanWell LED Converter
- Constant Current CC
- Input Voltage: 9~56Vdc
- Power: 15W
- Output Voltage Range CC: 2~52Vdc
- Output Current: 300mA
- Connector: Pin
- MeanWell LED Power Supply
- Constant Current CC
- Input Voltage: 9~56Vdc
- Power: 15W
- Output Voltage Range CC: 2~52Vdc
- Output Current: 300mA
- PWM Dimming and Remote ON/OFF control
- Protections: Short Circuit / Overtemperature
- IP67
- Compact body
- Dimensions: 31.8 x 20.3 x 12.2 mm
- Designed for LED Lighting
- Warranty: 3 years
Data sheet
- Dimming LED
- PWM
- Input VDC (Nominal)
- 12
24
48 - Output Regulation Type
- Constant Current / CC
- Input Voltage VDC (Range)
- 9~56VDC
- Operating Temperature
- -40°C / +85°C
- Power W
- 15
- IP Protection Grade
- IP67
- Mechanical Mounting Format
- Printed Circuit Board - PCB
- Efficiency
- 97%
- Dimensions
- 31.8 x 20.3 x 12.2 mm
- Output Current mA
- 300
- Output Current A
- 0.3
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- "LDD"
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 2/0. [7.0.NO.]/LTT-3
- List Price
- 7.6
- Input Current
- 270mA
