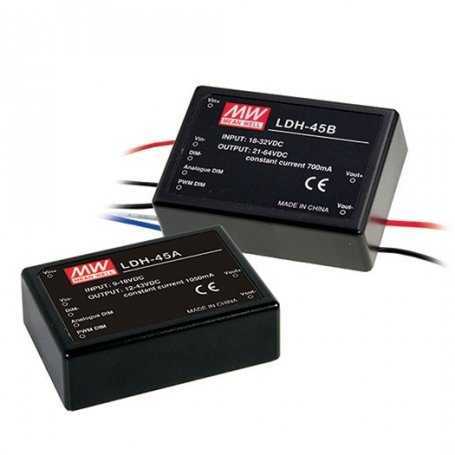

The product image may slightly differ as it is representative of the family and not the model.
LDH-45A-700 - Meanwell - DC-DC Converter - 45W 700mA - 12VDC Input
- MeanWell LED Power Supply
- Constant Current DC
- Power: 45W
- DC Output Voltage Range: 12~64Vdc
- Output Current: 700mA
- Input Voltage: 9~18Vdc
- PWM Dimming and remote ON/OFF control
- Protections: Short Circuit / Overload / Undercharge
- Dimensions: 75 x 53 x 22.7 mm
- Warranty: 3 years
- with Pin
- MeanWell LED Power Supply
- Constant Current CC
- Power: 45W
- Output Voltage Range: 12~64Vdc
- Output Current: 700mA
- Input Voltage: 9~18Vdc
- PWM Dimming and Remote ON/OFF Control
- Protections: Short Circuit / Overload / Underload
- Dimensions: 75 x 53 x 22.7 mm
- Warranty: 3 years
- with Plug
- Dimming LED
- PWM
- Input VDC (Nominal)
- 12
- Output Regulation Type
- Constant Current / CC
- Input Voltage VDC (Range)
9~18VDC- Operating Temperature
- -40°C / +70°C
- Power W
- 45
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 75 x 53 x 22.7 mm
- Output Current mA
- 700
- Output Current A
- 0.7
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Product Family
- LDH is the abbreviation for "lattato deidrogenasi" in Italian, which translates to "lactate dehydrogenase" in English.
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 3/0. [10.0.NO.]/LTT-3
- List Price
- 16.1
