LDH-45B-700WDA  LDH-45B-700WDA - Convertitore DC/DC MeanWell - CC - 45W / 700mA DALI - Ingresso 24VDC  Mean Well  Alimentator...
zoom_out_map
chevron_left chevron_right

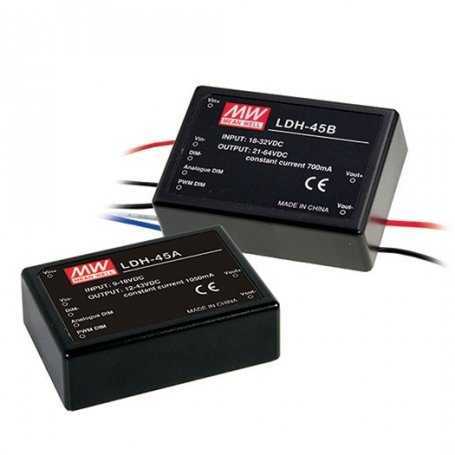

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

LDH-45B-700WDA - Meanwell - DC-DC converter CC - 45W 700mA DALI - 24VDC input

€17.50 Tax excluded

€17.50 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €17.50 €17.50
5 €17.15 €85.75
10 €16.80 €168.00
20 €16.45 €329.00
Description
  • MeanWell LED Power Supply
  • Constant Current DC
  • Power: 45W
  • Output Voltage Range DC: 21~64Vdc
  • Output Current: 700mA
  • Input Voltage: 18~32Vdc
  • PWM Dimming and remote ON/OFF control
  • Protections: Short Circuit / Overload / Underload
  • Dimensions: 75 x 53 x 22.7 mm
  • Warranty: 3 years

  • with Wire
  • Dimming: DALI
  • MeanWell LED Power Supply
  • Constant Current CC
  • Power: 45W
  • CC Output Voltage Range: 21~64Vdc
  • Output Current: 700mA
  • Input Voltage: 18~32Vdc
  • PWM Dimming and Remote ON/OFF Control
  • Protections: Short Circuit / Overload / Underload
  • Dimensions: 75 x 53 x 22.7 mm
  • Warranty: 3 years

  • with Wire
  • Dimming: DALI
Data sheet
Mean Well
LDH-45B-700WDA
New
7438645886766
Dimming LED
Dali
Input VDC (Nominal)
24
Led Dimming (interface)
Dali
Output Regulation Type
Constant Current / CC
Input Voltage VDC (Range)

18~36VDC
Operating Temperature
-40°C / +70°C
Power W
45
Mechanical Mounting Format
Closed Plastic Container
Efficiency
95%
Dimensions
75 x 53 x 22.7 mm
Output Current mA
700
Output Current A
0.7
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Product Family
LDH is the abbreviation for "lattato deidrogenasi" in Italian, which translates to "lactate dehydrogenase" in English.
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
23.5
