LF-ADD013-0400-42 - Alimentatore LED Lifud - 13W - dimmerabile DALI-2 e push
zoom_out_map
chevron_left chevron_right

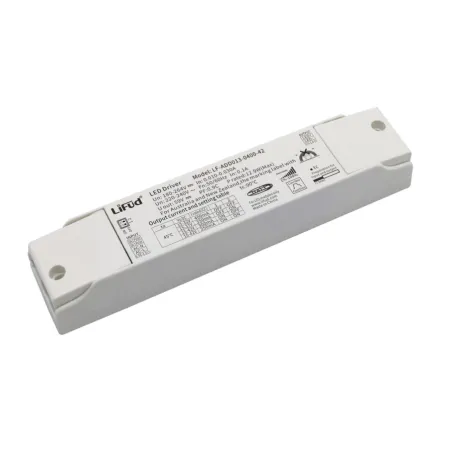

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

LF-ADD013-0400-42 - Lifud LED Power Supply - 13W - DALI-2 and push dimmable

€18.13 Tax excluded

€18.13 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €18.13 €18.13
5 €17.77 €88.84
10 €17.40 €174.05
20 €17.04 €340.84
Description

LF-ADD013-0400-42 is a dimmable DALI or PUSH LED driver of 13W. Its input voltage ranges from 220 to 240Vac and the output current is adjustable through DIP switch from 250 to 400 mA with increments of 50mA. It has complete protections: overvoltage and short circuit protection.

Features:

  • Dimmable via DALI or PUSH
  • Current adjustable via DIP switch
  • Suitable for Class II lighting fixtures
  • Isolated, flicker-free

Applications:

  • Office Lighting
  • Commercial Lighting
  • Residential Lighting

Our Rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main Technical Specifications

MODEL LF-ADD013
Output Type Constant Current / CC
Output Voltage 15~42V 15~37V 15~32V
Rated Output Current 250mA 300mA 350mA 400mA
Power (Rated) 13W
Dimmable

DALI Dimming Function. Push Dimming Function.

Max Efficiency ≥81% ≥82%
Input Voltage VAC 220-240VAC (voltage limit: 198-264VAC)
PFC YES
Protection Grade IP20
Operating Temperature -30℃ ~ +45℃
Dimensions 142.0*30.0*22.0 mm
Certifications CE, ENEC, CB, RCM, CCC, EL. UKCA
For purchases and samples CONTACT US



See also:

Download the LED driver catalogs in the attachments tab.

Data sheet
LiFUD
LF-ADD013-0400-42
New
7438645977969
Insulation Voltage
2000
Dimming LED
Dali
Push
Led Dimming (interface)
Dali
Push
External Use
No
Output Regulation Type
Constant Current / CC
Current Protection Type
Hiccup Mode
Power Supply Type
Constant Current / CC
Input Voltage VAC
220~240VAC
220~240VAC
Operating Temperature
-30 ~ +45℃
Rating
453
Output Voltage Range
15~42V
Power W
13
PFC
YES
IP Protection Grade
IP20
Warranty
5 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
81%
82%
Dimensions
142.0*30.0*22.0
Output Current mA
250
300
350
400
Output Current A
0.3
0.4
0.25
0.35
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
Could you please provide the text you would like translated?
