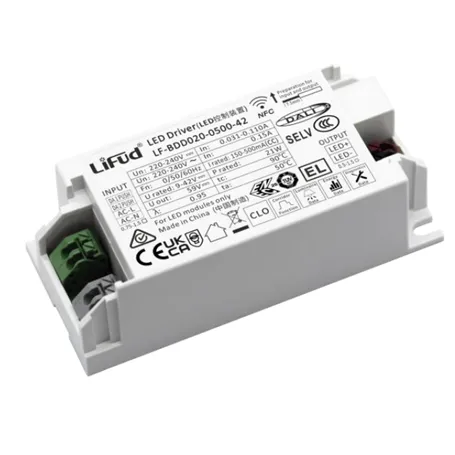

LF-BDD020-0500-42 LED Power Supply LiFUD - 20W - 250-500mA Constant Current DC - DALI and PUSH dimmable
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

LF-BDD020-0500-42 LED Power Supply LiFUD - 20W - 250-500mA Constant Current DC - DALI and PUSH dimmable

€20.30 Tax excluded

€20.30 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €20.30 €20.30
5 €19.89 €99.47
10 €19.49 €194.88
20 €19.08 €381.64
Description



Product family features:

  • DALI and PUSH dimmable
  • Dimming range: from 1 to 100%
  • Output current tolerance: 1%
  • Efficiency up to 88%
  • Output voltage range: 9-42V
  • Low THD
  • 5-year warranty

Product family benefits:

  • Advanced functions: EL, CorridorDIM, CLO
  • External parts DALI-2 251, 252 and 253
  • Adjustable output current and setting parameter via DALI programmer or NFC
  • 2 sets of L/N at the input, convenient for parallel connection of more luminous devices with wide terminals for screwless wiring
  • Compliant with Zhaga Book13, 24
  • Overvoltage level: PUSH: 1kV

Typical applications:

  • For spotlights and recessed spotlights
  • For office, commercial and retail lighting

Product parameters:

  • Output current 150-500mA
  • Output power 4.5-21W
  • Input voltage 198–264Vac
  • Output voltage 9-42Vdc
  • Efficiency 88%

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main technical specifications

MODEL LF-BDD020-0500-42
Output Type Constant Current
Output Voltage 9~42VDC
Nominal Output Current 150-500mA (adjustable via DALI or NFC)
Power (Nominal) 4.5-21W
Dimmable DALI-2, PUSH
Max Efficiency 88%
Input Voltage VAC 198-264 VAC
PFC NO
Dimensions 97x43x30mm

See also:

Download the LED driver catalogs in the attachments tab.

Data sheet
LiFUD
LF-BDD020-0500-42
New
7438645978713
Output Regulation Type
Constant Current / CC
Input Voltage VAC
198-264VAC
198-264VAC
Rating
453
Output Voltage Range
9-42
Power W
9-13
PFC
No
IP Protection Grade
IP20
Warranty
5 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
88%
Dimensions
96mm x 36mm x 24mm
Output Current mA
150
200
300
400
500
Output Current A
0.2
0.3
0.4
0.5
0.15
Input Connector
At Speed
Cable
Output Connection
At Speed
Wired
Isolation Class
Class 2
Certifications
ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
RoHS
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UKCA
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
