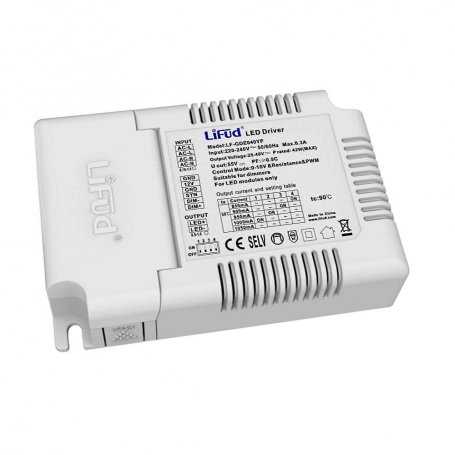

The product image may slightly differ as it is representative of the family and not the model.
LF-GDE040YP LED Power Supply LiFUD 40W - 850~1050mA Constant Current DC selectable - Dimmable
Power supplies for Led LiFUD series LF-GDE040YP, power 40 Watt Constant Current selectable 850mA, 900mA, 950mA, 1000mA, 1050mA
The LED power supplies LiFUD of the LF-GDE040YP series allow you to select the output current from 850mA up to 1050mA, as well as being compatible with three different dimming technologies (0-10V, resistance, PWM).
These features make them suitable for most applications, whether it is a first installation, or for replacement and improvement of drivers on ceiling lights and 60x60 led panels or to make them dimmable thanks to the 3 in 1 dimming functions. They are also reliable and durable, with a 5-year warranty.
LF-GDE040YP is perfect for powering medium power LED ceiling lights (up to [[w] Watts) at constant current.
Main Features:
- Economical and reliable
- Dimmable (0-10V, resistance, PWM)
- Plastic container
- Selectable output current
- Safe: equipped with protections from overvoltage, short circuit and overload
- [[class]] insulation class (without ground)
- Quiet: No fans
- Warranty [[warranty]]
- Efficiency up to [[efficiency]
- [[adjustment]]
- Input: [[input]]
- Certifications: [[certificates]]
- Dimensions: [[dimensions]]
Applications:
- Power supply for LED ceiling lights
- Led strips
- Led spotlights power supply
- LED modules lighting for signs
- LED displays
Our Rating:
- Reliability
- Price
- Features
- [[vote1]]
- [[vote2]]
- [[vote3]]
Main Technical Specifications
| MODEL | LF-GDE040YP |
|---|---|
| Output Type | [[adjustment]] |
| Output Voltage | 25~40VDC |
| Nominal Output Current | Selectable: 850mA, 900mA, 950mA, 1000mA, 1050mA |
| Power (Nominal) | 40 Watts |
| Dimmable | 3in1 0-10V / Resistance / PWM |
| Max Efficiency | [[efficiency]] |
| VAC Input Voltage | [[input]] |
| PFC | YES |
| Dimensions | [[dimensions]] |
See also:
Download the LED power supply catalogs in the attachments tab.
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 220~240VAC
220~240VAC - Rating
- 453
- Power W
- 40
- PFC
- Yes
- IP Protection Grade
- IP20
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 87%
- Dimensions
- 124.5x82.5x25.4 mm
- Output Current mA
- 850
900
950
1000
1050 - Output Current A
- 0.8
0.9
0.95
1
1.5 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
- I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
- TK-CODE
- 0/0. [0.0.NO.]/LTT-ON REQUEST
