The product image may slightly differ as it is representative of the family and not the model.

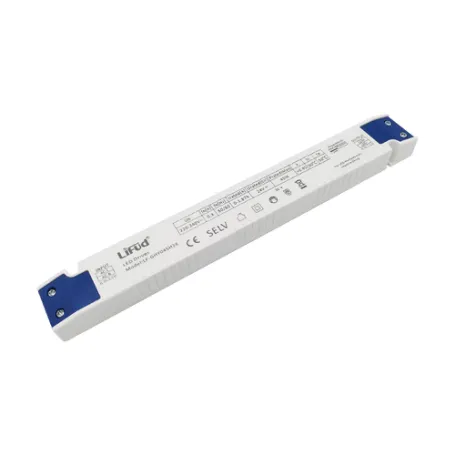

LF-GHY150H24 - LiFUD 150W LED Power Supply - Constant Voltage CV - 24V - Flicker Free
Description
LF-GHY150H24 is an isolated constant voltage LED driver with a power of 150W. Its input voltage ranges from 220 to 240Vac; the output voltage is 24V and the output current ranges from 0 to 6.25A. It is mainly used for indoor constant voltage LED strips.
Main features:
- High efficiency, high PF and low THD
- Isolated, flicker free
- Perfect for Class II installations
Applications:
- Decorative indoor lighting
- Home lights
Our rating:
- Reliability
- Price
- Features
Main technical specifications
| MODEL | LF-GHY150H24 |
|---|---|
| Output type | Constant voltage |
| Output voltage | 24VDC |
| Nominal output current | 6250A |
| Power (Nominal) | 100W |
| Dimmable | NO |
| Max efficiency | 93% |
| Input voltage VAC | 220-240VAC |
| PFC | NO |
See also:
Download the LED driver catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
- Input Voltage VAC
- 220~240VAC
220~240VAC - Operating Temperature
- -30°C / +50°C
- Power W
- 150
- IP Protection Grade
- IP20
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Dimensions
- 336*30.7*22.8mm
- Output Current mA
- 6250
- Output Current A
- 6.25
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
- I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
