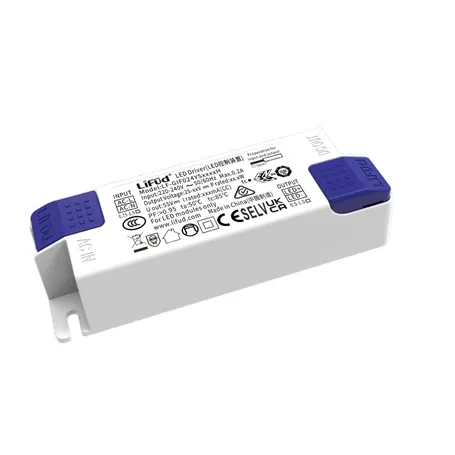

LF-GIF024YS - Flicker-free Lifud LED Power Supply - 24W - from 450 to 600mA Constant Current DC
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

LF-GIF024YS - Flicker-free Lifud LED Power Supply - 24W - from 450 to 600mA Constant Current DC

€4.06 LF-GIF024YS0450H
€4.06 The text "LF-GIF024YS0500H" is not Italian. It appears to be a model or serial number of a product and does not require translat
€4.06 LF-GIF024YS0550H
€4.06 This text appears to be a model number or product code and doesn't need translation.

€4.06 Tax excluded

€4.06 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €4.06 €4.06
5 €3.98 €19.89
10 €3.90 €38.98
20 €3.82 €76.33
Description

Available models: LF-GIF024YS0450H, LF-GIF024YS0500H, LF-GIF024YS0550H, LF-GIF024YS0600H

TheThe text you provided ("LF-GIF024YS") doesn't appear to be Italian or any other language. It seems to be a model number or a product code. Therefore, there is no translation needed.It is a 24W EU standard flicker-free LED driver. The voltage input is 220-240VAC, with an output voltage range of 25-42VDC and an output current range of 450-600mA. Perfect for Class II lighting systems.

Features:

  • Flicker-free
  • High performance
  • IP20
  • 5 years warranty

Applications:

  • Indoor lighting
  • Ambient lights
  • Residential lights

Our vote:

  • Reliability
  • Price
  • Features
    • [[voto1]It seems like you forgot to provide the text you want to be translated. Please provide the Italian text.
    • [[voto2]It seems like you forgot to provide the text you want to be translated. Please provide the Italian text.
    • [[voto3]It seems like you forgot to provide the text you want to be translated. Please provide the Italian text.

Main technical specifications

MODEL LF-GIF024YS0450H The text appears to be a product model number or code and does not require translation. LF-GIF024YS0550H LF-GIF024YS0600H
Output voltage 25~42VDC 25~39VDC
Nominal Output Current 450mA 500mA 550mA 600mA
Power 24W
Max Efficiency ≥87% ≥87.5% ≥87.5% ≥87.5%
Input Voltage VAC 220-240VAC (voltage limit: 198-264VAC)
Protection Degree IP20
Working temperature -30℃ ~ +50℃
Dimensions 113*37*26.5mm
Certifications ENEC, CE, CB, CCC
For purchases and sampling CONTACT US



See also:

Download the LED power supply catalogs in the attachments tab.

Data sheet
LiFUD
LF-GIF024YS0450H
New
Insulation Voltage
3000
External Use
No
Output Regulation Type
Constant Current / CC
Current Protection Type
Hiccup Mode
Power Supply Type
Constant Current / CC
Input Voltage VAC
220~240VAC
220~240VAC
Operating Temperature
-30°C / +50°C
Rating
453
Output Voltage Range
25~40V
Power W
24
PFC
No
IP Protection Grade
IP20
Warranty
5 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
87%
87.5%
Dimensions
115*41*28mm
Output Current mA
450
500
550
600
Output Current A
0.5
0.6
0.45
0.55
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 1
Certifications
ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
