The product image may slightly differ as it is representative of the family and not the model.

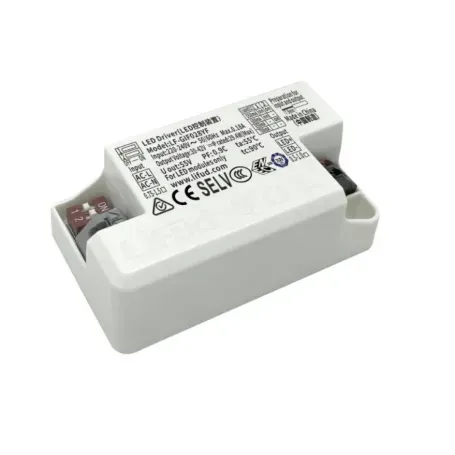

LF-GIF028YF - Lifud isolated LED power supply without flicker - 28W - from 550 to 700mA - Constant Current DC Jolly - Track Ligh
Description
Available models: LF-GIF028YF
LF-GIF028YF is a 28W isolated and flicker-free constant current LED power supply. It stands out for its compact size, integrated design, high efficiency, high power factor, and operating temperature up to 55℃. It is suitable for split type LED track lights (each integrated track light or spotlights are discouraged) and the ambient temperature should not exceed 55℃. The output current is adjustable via a built-in 4-position DIP switch, including 550mA, 600mA, 650mA, 700mA.
Features:
- Flicker-free
- Simple structure
- High efficiency
- 5-year warranty
Applications:
- Indoor lighting
- Ambient lights
- Residential lights
- Commercial installations
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LF-GIF028YF | ||||
|---|---|---|---|---|---|
| Output Voltage | 30~42VDC | ||||
| Nominal Output Current | 550mA - 600mA - 650mA - 700mA | ||||
| Power | 28W | ||||
| Max Efficiency | ≥90% | ||||
| Input Voltage VAC | 220-240VAC (voltage limit: 200-264VAC) | ||||
| Protection Degree | IP20 | ||||
| Working Temperature | -30℃ ~ +55℃ | ||||
| Dimensions | 90.2*40.5*26.8mm | ||||
| Certifications | CE, CB, RCM, ENEC, CCC | ||||
| For purchases and samples | CONTACT US | ||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Insulation Voltage
- 3000
- External Use
- No
- Output Regulation Type
- Constant Current / CC
- Current Protection Type
- Hiccup Mode
- Power Supply Type
- Constant Current / CC
- Input Voltage VAC
- 220~240VAC
220~240VAC - Operating Temperature
- -30°C / +50°C
- Rating
- 453
- Output Voltage Range
- 30~43V
- Power W
- 28
- PFC
- No
- IP Protection Grade
- IP20
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 115*41*28mm
- Output Current mA
- 550
600
650
700 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 1
- Certifications
- ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
- I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
