LF-GSD015YE - Alimentatore LED Lifud - 15W - da 100 a 350mA Jolly Corrente Costante CC
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

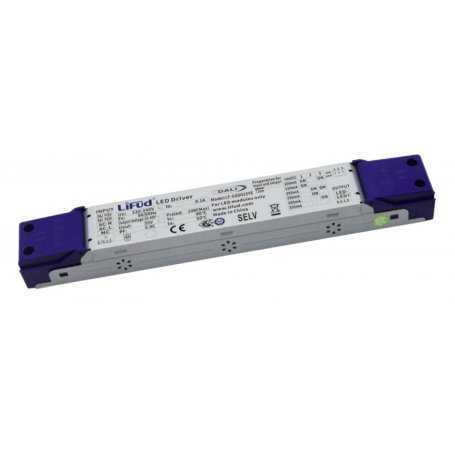

LF-GSD015YE - Lifud LED Power Supply - 15W - from 100 to 350mA Jolly Constant Current DC - DALI and push dimmable

€27.09 Tax excluded

€27.09 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €27.09 €27.09
5 €26.55 €132.74
10 €26.01 €260.06
20 €25.46 €509.29
Description

Available models: LF-GSD015YE

TheLF-GSD015Y3It is a constant current LED driver. 15W. Offers dimming function DALI and push, with nominal voltage input 198-264VAC. The current output can be adjusted via DIP switch from 100mA up to 350mA, in steps of 50mA.

Features:

  • IP 20
  • Metallic case
  • Perfect for Class II and I lighting systems
  • Output at constant current. The output can be adjusted via DIP switch.
  • Integrated active PFC.
  • Stand-by consumption
  • Dimming depth: 0.1%
  • DALI dimming function. The logarithmic or linear dimming curve can be selected via software.
  • Push dimming function
  • 5 years warranty.

Applications:

  • Office lighting
  • Decorative lights
  • Commercial lights
  • Residential lights
  • Plant lighting.

Our vote:

  • Reliability
  • Price
  • Features
    • [[voto1]There is no text provided to translate. Please provide the text you want translated.
    • [[voto2]There is no text provided to translate. Please provide the text you want translated.
    • [[voto3]There is no text provided to translate. Please provide the text you want translated.

Main technical specifications

MODELThe text "LF-GSD015YE" appears to be a model number or code and does not require translation.
Type of exit Constant Current / CC
Output voltage 25~42V
Nominal Output Current 100mA 150mA 200mA 250mA 300mA 350mA
Power (Nominal) 15 W
Dimmable

DALI dimming function. Push dimming function.

Max Efficiency ≥74% ≥76%
Input Voltage VAC 220-240VAC (voltage limit: 198-264VAC)
PFC YES
Protection Degree IP20
Working temperature -30℃ ~ +50℃
Dimensions 195x30x21mm
Certifications CE, CB, RCM, CCC, ENEC
For purchases and sampling CONTACT US



Senza titolo-1_8.png



See also:

Download the LED power supply catalogs in the attachments tab.

Data sheet
LiFUD
LF-GSD015YE
New
7438645967106
Dimming LED
Dali
Push
Insulation Voltage
3000
Led Dimming (interface)
Dali
Push
External Use
No
Output Regulation Type
Constant Current / CC
Current Protection Type
Hiccup Mode
Power Supply Type
Constant Current / CC
Input Voltage VAC
220~240VAC
220~240VAC
Operating Temperature
-30°C / +50°C
Rating
453
Output Voltage Range
25-42V
Power W
15
PFC
YES
IP Protection Grade
IP20
Warranty
5 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
72%
76%
80%
82%
82.5%
83.5%
Dimensions
195x30x21mm
Output Current mA
100
150
200
250
300
350
Output Current A
0.1, 0.15, 0.2, 0.25, 0.3, 0.35
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
