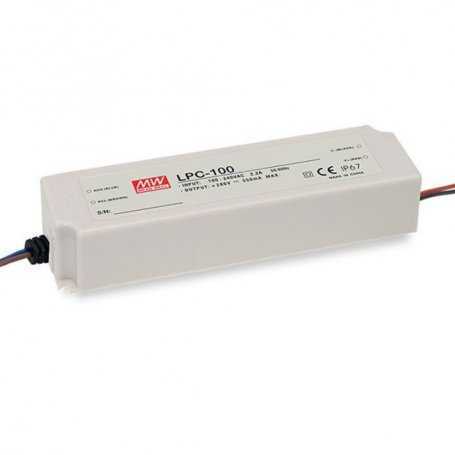

LPC-100 Meanwell LED Power Supply 100W - Constant CC Current 350mA 500mA 700mA 1050mA 1400mA 1750mA 2100mA
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

LPC-100 Meanwell LED Power Supply 100W - Constant CC Current 350mA 500mA 700mA 1050mA 1400mA 1750mA 2100mA

€25.69 LPC-100-350
€25.69 LPC-100-500
€25.69 LPC-100-700
€25.69 LPC-100-1050
€25.69 LPC-100-1400
€25.69 LPC-100-1750
€25.69 LPC-100-2100

€25.69 Tax excluded

€25.69 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €25.69 €25.69
5 €25.18 €125.88
10 €24.66 €246.62
20 €24.15 €482.97
Description

Led Power Supplies Mean Well series LPC-100, power 100Watt, nominal current 350mA, 500mA, 700mA, 1050mA, 1400mA, 1750mA, 2100mA

LED power supplies Mean Well of the LPC-100 seriesThey are entry-level products, with a 2-year warranty, protected by a sturdy plastic structure and have an IP67 certification.

Features:

  • MeanWell LED Power Supply
  • Constant Current / CC
  • Universal AC input
  • High efficiency at 90%
  • It can withstand input spikes of 300 VAC for 5 seconds.
  • Protections: short circuit, overvoltage
  • Free air convection cooling
  • Compact and small-sized LED power supply
  • Power: 100W
  • Economical and reliable
  • Insulated plastic container
  • Class II power unit, no FG
  • 100% full load burn-in test
  • Input: 90 ~ 264VAC,127 ~ 370VDC
  • IP67
  • Class 2
  • Dimensions: 190x52x37mm
  • Warranty: 2 years

Applications:

  • Powering video cameras
  • Led strips
  • LED spotlight power supply
  • Suitable for related LED devices or LED devices (such as LED decorations or advertising devices)
  • LED module lighting for signs
  • LED display

Our vote:

  • Reliability
  • Price
  • Characteristics
    • [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.

Mechanical Features

Caratteristiche-Meccaniche

Main technical specifications

MODELLPC-100-350LPC-100-500LPC-100-700LPC-100-1050LPC-100-1400LPC-100-1750LPC-100-2100
Type of exit

Constant Current / CC

Constant Current Output 143 ~ 286V 100 ~ 200V 72 ~ 143V 48 ~ 96V 36 ~ 72V 29 ~ 58V 24 ~ 48V
Nominal Output Current 350mA 500mA 700mA 1050mA 1400mA 1750mA 2100mA
Power (Rated) 100.1W 100W 100.1W 100.8W 100.8W 101.5W 100.8W
Input voltage range 90 ~ 264VAC 127 ~ 370VDC
Dimmable NO
Max Efficiency 90% 90% 90% 90% 89.5% 89.5% 89%
Output current accuracy ±5.0%
Input Voltage VAC 90 ~ 264VAC 127 ~ 370VDC
AC input current 2.2 A / 115VAC 1.2A / 230VAC
Input leakage current 0.25mA / 240VAC
Protection Degree IP67
PFC NO
Dimensions 190x52x37mm
Certifications CE, CB
For purchases and sampling CONTACT US

See also:

Download the LED power supply catalogs in the attachments tab.


Discover more information about

Data sheet
Mean Well
LPC-100-350
New
0 Items
4021087028004
Output Regulation Type
Constant Current / CC
Input Voltage VAC
90 ~ 264VAC
90 ~ 264VAC
Operating Temperature
-25°C / +50°C
Rating
453
Power W
100
PFC
No
IP Protection Grade
IP67
Warranty
2 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
90%
Dimensions
190x52x37mm
Output Current mA
350
500
700
1050
1400
1750
2100
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
Could you please provide more context or clarify what "LPC" refers to? It seems to be an acronym and without additional context, it's challenging to provide an accurate translation.
