The product image may slightly differ as it is representative of the family and not the model.
LPC-150 Meanwell LED Power Supply 150W DC currents 350mA 500mA 700mA 1050mA 1400mA 1750mA 2100mA 2450mA 2800mA 3150mA
Description
Led power supplies Mean Well series LPC-150, power 150Watt, nominal current 350mA, 500mA, 700mA, 1050mA, 1400mA, 1750mA, 2100mA, 2450mA, 2800mA, 3150mA
LED power supplies Mean Well of the LPC-150 seriesThey are entry-level products, with a 2-year warranty, protected by a sturdy plastic structure and have an IP67 certification.
Features:
- MeanWell LED Power Supply
- Constant Current / CC
- Universal AC input
- High efficiency at 90%
- It can withstand input spikes of 300 VAC for 5 seconds.
- Protections: short circuit, overvoltage
- Free air convection cooling
- Compact and small-sized LED power supply
- Power: 150W
- Economical and reliable
- Insulated plastic container
- Class II power unit, no FG
- 100% full load burn-in test
- Input: 90 ~ 264VAC,127 ~ 370VDC
- IP67
- Class 2
- Dimensions:191x63x37.5mm
- Warranty: 2 years
Applications:
- Powering video cameras
- Led strips
- LED spotlight power supply
- Suitable for related LED devices or LED devices (such as LED decorations or advertising devices)
- LED module lighting for signs
- LED display
Our vote:
- Reliability
- Price
- Characteristics
-
- [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.

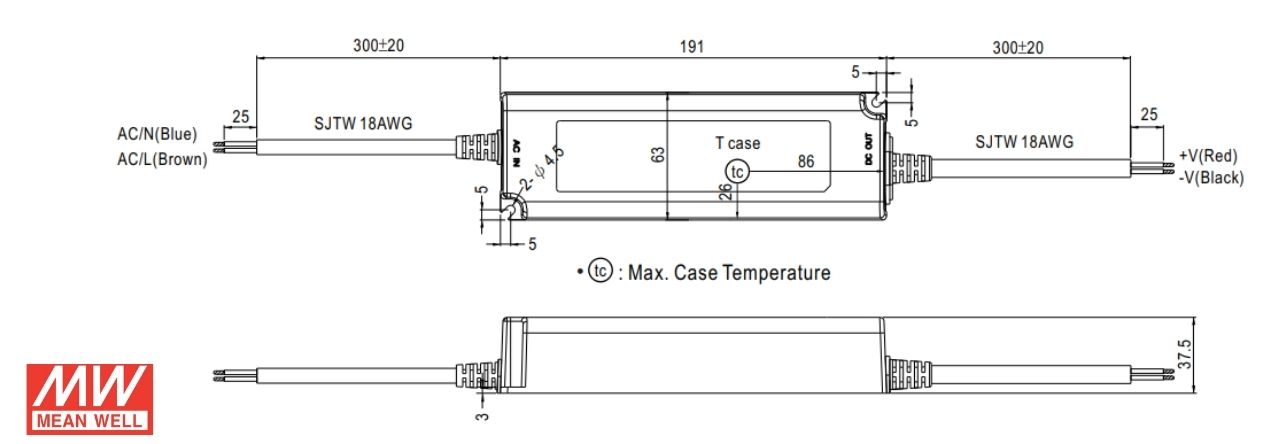

Mechanical Features
Main technical specifications
| MODEL | LPC-150-350 | LPC-150-500 | LPC-150-700 | LPC-150-1050 | LPC-150-1400 | LPC-150-1750 | LPC-150-2100 | LPC-150-2450 | LPC-150-2800 | LPC-150-3150 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of exit |
Constant Current / CC |
||||||||||||||||||||||||||||||||
| Constant Current Output | 215 ~ 430V | 150 ~ 300V | 107V ~ 215V | 72V ~ 144V | 54V ~ 108V | 43V ~ 86V | 36V ~ 72V | 31V ~ 62V | 27V ~ 54V | 24V ~ 48V | |||||||||||||||||||||||
| Nominal Output Current | 350mA | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | 2450mA | 2800mA | 3150mA | |||||||||||||||||||||||
| Power (Rated) | 150.5W | 150W | 150.5W | 151.2W | 151.2W | 150.5W | 151.2W | 151.9W | 151.2W | 151.2W | |||||||||||||||||||||||
| Input voltage range | 90 ~ 264VAC 127 ~ 370VDC | ||||||||||||||||||||||||||||||||
| Dimmable | NO | ||||||||||||||||||||||||||||||||
| Efficiency | 90% | ||||||||||||||||||||||||||||||||
| Output current accuracy | ±5.0% | ||||||||||||||||||||||||||||||||
| Input Voltage VAC | 90 ~ 264VAC 127 ~ 370VDC | ||||||||||||||||||||||||||||||||
| AC input current | 1.7 A / 230VAC 1.5A / 277VAC | ||||||||||||||||||||||||||||||||
| Input leakage current | 0.25mA / 277VAC | ||||||||||||||||||||||||||||||||
| Protection Degree | IP67 | ||||||||||||||||||||||||||||||||
| PFC | NO | ||||||||||||||||||||||||||||||||
| Dimensions | 191x63x37.5mm | ||||||||||||||||||||||||||||||||
| Certifications | CE, CB | ||||||||||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | ||||||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -25°C / +50°C
- Rating
- 453
- Power W
- 150
- PFC
- No
- IP Protection Grade
- IP67
- Warranty
- 2 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 191x63x37.5mm
- Output Current mA
- 350
500
700
1050
1400
1750
2100
2800
3150 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
