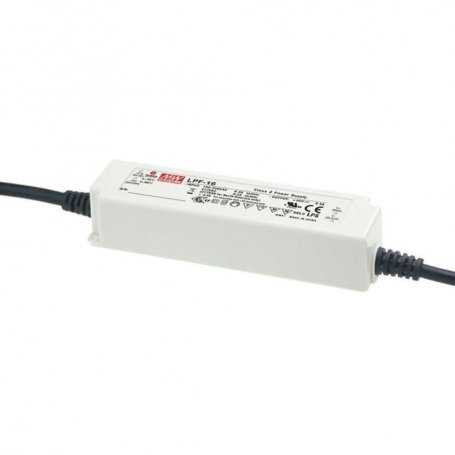

The product image may slightly differ as it is representative of the family and not the model.
LPF-16 Meanwell - 16W LED Power Supply - Constant Voltage CV Constant Current CC
Description
Led Power Supplies Mean Well LPF-16 series, power 16Watt, nominal current 0.3A, 0.34A, 0.39A, 0.45A, 0.54A, 0.67A, 0.8A, 1.07A, 1.34A
The LED power supplies from Mean Well of the LPF-16 series are entry-level products, with a 5-year warranty, protected by a durable plastic structure.
The LPF-16 series has a dual output mode in constant voltage and constant current, it has a voltage input range from 90-305 VAC and offers models with different nominal voltages between 12 V and 54 V.
The entire series is suitable for working for a variety of applications in dry or damp places and optional models with IP67 rating are able to work further in damp places.
Features:
- MeanWell LED Power Supply
- Output in Constant Voltage CV + Constant Current CC mode
- Class II
- Built-in active PFC function
- Fully encapsulated with IP30 protection rating, optional IP67 rating
- Typical lifespan>50000 hours
- Dimensions: 148x40x32mm
- Warranty: 5 years
Applications:
- LED Spotlights
- LED Decorative Lighting
- LED Tunnel Lighting
Our Rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LPF-16-12 | LPF-16-15 | LPF-16-20 | LPF-16-24 | LPF-16-30 | LPF-16-36 | LPF-16-42 | LPF-16-48 | LPF-16-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of output | Constant Current / CC + Constant Voltage / CV | |||||||||||||||||||||||||||||||
| DC output voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||||||||||||||||||
| Nominal output current | 1.34A | 1.07A | 0.8A | 0.67A | 0.54A | 0.45A | 0.39A | 0.34A | 0.3A | |||||||||||||||||||||||
| Power (Nominal) | 16.08W | 16.05W | 16W | 16.08W | 16.2W | 16.2W | 16.38W | 16.32W | 16.2W | |||||||||||||||||||||||
| Efficiency | 84% | 84% | 86% | 86% | 86% | 86% | 86% | 86% | 86% | |||||||||||||||||||||||
| Input voltage range | 90 ~ 305VAC | |||||||||||||||||||||||||||||||
| Dimmable | NO | |||||||||||||||||||||||||||||||
| Working temperature | -35 ~ +70 °C | |||||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||||
| Dimensions | 148x40x32mm | |||||||||||||||||||||||||||||||
| Protection Rating | IP30 | |||||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attached tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Output Voltage VDC
- 12
15
20
24
30
36
42
48
54 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -35 ~ +70 °C
- Rating
- 453
- Power W
- 16
- PFC
- Yes
- IP Protection Grade
- IP30
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 86%
- Dimensions
- 148x40x32mm
- Output Current mA
- 300
340
390
450
540
670
800
1070
1340 - Output Current A
- 0.3
0.8
0.34
0.39
0.45
0.54
0.67
1.07
1.34 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
