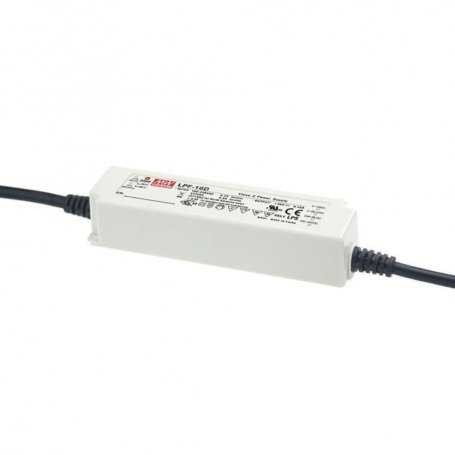

The product image may slightly differ as it is representative of the family and not the model.
LPF-16D Meanwell - 16W LED Power Supply - DC - Currents 300mA 340mA 390mA 450mA 540mA 670mA 800mA 1070mA 1340mA
Power supplies for Led Mean Well LPF-16D series, power 16Watt, nominal current 0.3A, 0.34A, 0.39A, 0.45A, 0.54A, 0.67A, 0.8A, 1.07A, 1.34A
The LED power supplies of the Mean Well LPF-16D series are entry-level products, with a 5-year warranty, protected by a durable plastic structure.
The LPF-16D series has a constant current output, has an input voltage range from 90-305 VAC and offers models with different nominal voltages between 12 V and 54 V.
The entire series is suitable for working for a variety of dry or wet applications and optional models with IP67 protection rating are able to work further in wet places.
The LPF-16D series is equipped with the 3-in-1 adjustment function in order to provide design flexibility for the LED lighting system.
Features:
- Mean Well LED Power Supply
- Output in Constant Current CC mode
- Class II
- Built-in active PFC function
- 3 in 1 Dimming
- Fully encapsulated with IP30 protection degree, optional IP67 rating
- Typical duration> 50000 hours
- Protection from: overcurrent, short circuit, overvoltage, overtemperature
- Dimensions: 148x40x32mm
- Warranty: 5 years
Applications:
- LED spotlights
- Decorative LED lighting
- LED tunnel lighting
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LPF-16D-12 | LPF-16D-15 | LPF-16D-20 | LPF-16D-24 | LPF-16D-30 | LPF-16D-36 | LPF-16D-42 | LPF-16D-48 | LPF-16D-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Current / CC | |||||||||||||||||||||||||||||||
| DC output voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||||||||||||||||||
| Nominal output current | 1.34A | 1.07A | 0.8A | 0.67A | 0.54A | 0.45A | 0.39A | 0.34A | 0.3A | |||||||||||||||||||||||
| Power (Nominal) | 16.08W | 16.05W | 16W | 16.08W | 16.2W | 16.2W | 16.38W | 16.32W | 16.2W | |||||||||||||||||||||||
| Efficiency | 83% | 83% | 84.5% | 84.5% | 84.5% | 85% | 85% | 85% | 84.5% | |||||||||||||||||||||||
| Input voltage range | 90 ~ 305VAC | |||||||||||||||||||||||||||||||
| Dimmable | PWM Resistance 1-10V | |||||||||||||||||||||||||||||||
| Operating temperature | -35 ~ +70 °C | |||||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||||
| Dimensions | 148x40x32mm | |||||||||||||||||||||||||||||||
| Protection degree | IP30 | |||||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
- Output Regulation Type
- Constant Current / CC
- Output Voltage VDC
- 12
15
20
24
30
36
42
48
54 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -35 ~ +70 °C
- Rating
- 453
- Power W
- 16
- PFC
- Yes
- IP Protection Grade
- IP30
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 85%
- Dimensions
- 148x40x32mm
- Output Current mA
- 300
340
390
450
540
670
800
1070
1340 - Output Current A
- 0.3
0.8
0.34
0.39
0.45
0.54
0.67
1.07
1.34 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
