The product image may slightly differ as it is representative of the family and not the model.

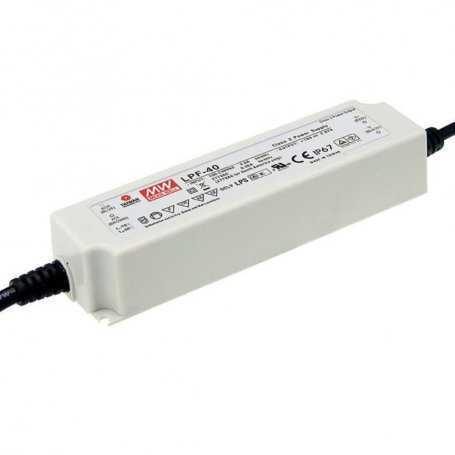

LPF-40 Meanwell - 40W LED Power Supply - Constant Voltage CV Constant Current CC
Description
Led Power Supplies Mean Well series LPF-40, power 40Watt, nominal current 760mA, 840mA, 960mA, 1120mA, 1340mA, 1670mA, 2000mA, 2670mA, 3340mA
The LED power supplies for Mean Well of the LPF-40 series are entry-level products, with a 5-year warranty, protected by a sturdy plastic structure.
The LPF-40 series has a dual output mode in constant voltage and constant current, it has an input voltage range from 90-305 VAC and offers models with different nominal voltages ranging from 12 V to 54 V.
The entire series is rated with IP67 protection level and is ideal for working in dry, humid or wet places.
Features:
- MeanWell LED power supply
- Output in Constant Voltage CV + Constant Current CC mode
- Class II
- Built-in active PFC function
- Fully encapsulated with IP67 protection grade
- Typical life>50000 hours
- Dimensions: 162.5x43x32mm
- Warranty: 5 years
Applications:
- LEDD panel lighting
- LED spotlights
- led decorative lighting
- LED tunnel lighting
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LPF-40-12 | LPF-40-15 | LPF-40-20 | LPF-40-24 | LPF-40-30 | LPF-40-36 | LPF-40-42 | LPF-40-48 | LPF-40-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Type | Constant Current / CC + Constant Voltage / CV | |||||||||||||||||||||||||||||||
| DC output voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||||||||||||||||||
| Nominal output current | 3.34A | 2.67A | 2A | 1.67A | 1.34A | 1.12A | 0.96A | 0.84A | 0.76A | |||||||||||||||||||||||
| Power (Nominal) | 40.08W | 40.08W | 40W | 40.08W | 40.2W | 40.32W | 40.32W | 40.32W | 41.04W | |||||||||||||||||||||||
| Efficiency | 84% | 85% | 86% | 87% | 88% | 88% | 88.5% | 90% | 90% | |||||||||||||||||||||||
| Input voltage range | 90 ~ 305VAC | |||||||||||||||||||||||||||||||
| Dimmable | NO | |||||||||||||||||||||||||||||||
| Working temperature | -40 ~ +80 °C | |||||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||||
| Dimensions | 162.5x43x32mm | |||||||||||||||||||||||||||||||
| Protection Grade | IP67 | |||||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments section.
Data sheet
- Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Output Voltage VDC
- 12
15
20
24
30
36
42
48
54 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -40°C / +80°C
- Rating
- 453
- Power W
- 40
- PFC
- Yes
- IP Protection Grade
- IP67
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 162.5x43x32mm
- Output Current mA
- 760
840
960
1120
1340
1670
2000
2670
3340 - Output Current A
- 0.76
0.84
0.96
1.12
1.34
1.67
2
2.67
3.34 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
