LPFH-60D-24  LPFH-60D-24 - Alimentatore LED MeanWell - CC - 60W / 2500mA - Dimmerabile  Mean Well  Alimentatori LED
zoom_out_map
chevron_left chevron_right

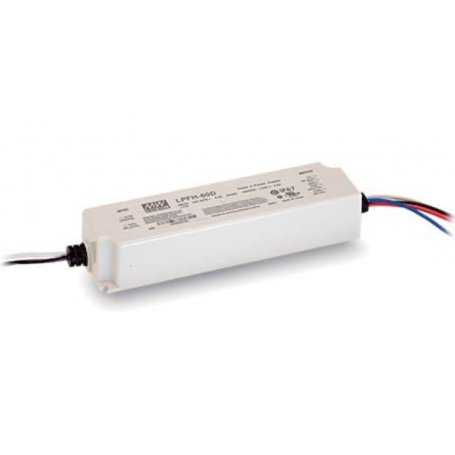

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

LPFH-60D-24 - Meanwell - DC LED Power Supply - 60W 2500mA - Dimmable

€36.61 Tax excluded

€36.61 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €36.61 €36.61
5 €35.88 €179.39
10 €35.15 €351.46
20 €34.41 €688.27
Description

End-Of-Life model, replaced by XLG-75

  • MeanWell LED Power Supply
  • Constant Current (CC)
  • Input: 200~400VAC
  • Power: 60W
  • Output: 24Vdc 2.5A
  • Dimming: PWM - 1/10Vdc - Resistance
  • MeanWell LED Power Supply
  • Constant Current (CC)
  • Input: 200~400VAC
  • Power: 60W
  • Output: 24Vdc 2.5A
  • IP67
  • Class II
  • Dimming: PWM - 1/10Vdc - Resistance
  • Protections: Short Circuit / Overload / Overvoltage / Overheating
  • Active PFC
  • Insulated plastic body
  • Designed for LED Lighting
  • Installation in dry environments
  • Warranty: 5 years
Data sheet
Mean Well
LPFH-60D-24
New
7438645886896
Dimming LED
Wired
Led Dimming (interface)
Wired
Output Regulation Type
Constant Current / CC
Output Voltage VDC
24
Input Voltage VAC
200~400VAC
200~400VAC
Operating Temperature
-40°C / +90°C
Power W
60
IP Protection Grade
IP67
Mechanical Mounting Format
Closed Plastic Container
Efficiency
89%
Dimensions
162.5x42.5x32 mm
Output Current mA
2500
Output Current A
2.5
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
It seems like "LPFH" might be an acronym or abbreviation, but without additional context, it's challenging to provide an accurate translation. Could you please provide more context or details about what "LPFH" refers to?
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
49.3
