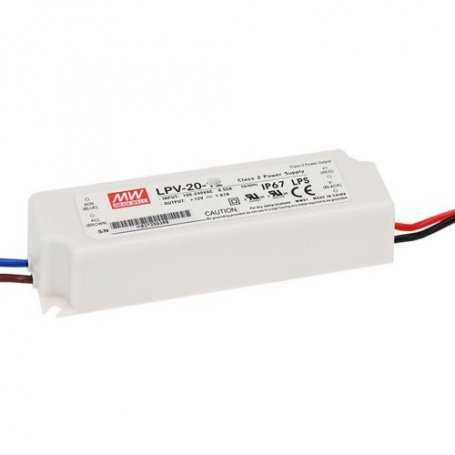

The product image may slightly differ as it is representative of the family and not the model.

LPV-20 Meanwell - LED Power Supply 20W - Constant Voltage CV 5V 12V 15V 24V - IP67

€11.06 LPV-20-5
€9.45 LPV-20-12
€9.66 LPV-20-15
€9.45 LPV-20-24

€11.06 Tax excluded

€11.06 Tax excluded

check Available

Order it before 1 hours and 24 minutes and receive it 11/26/24 with TNT Express

Quantity Unit price Total price Buy
1 €11.06 €11.06
5 €10.84 €54.19
10 €10.62 €106.18
20 €10.40 €207.93
Description

The LED power supplies Mean Well from the LPV-20 series are entry-level products, with a 2-year warranty, whose IP67 waterproof plastic structure makes them suitable even for installation in humid environments or outdoors.

Main features:

  • Economical and reliable
  • Plastic container
  • Perfectly sealed with IP67 rating
  • Supplied pre-wired with power cables both in and out.
  • Safe: equipped with protections from overvoltage, short circuit, and overload
  • Class 2 insulation (without ground)
  • Perfect for installation in standard boxes or outdoors
  • Quiet: Absence of fans
  • 2-year warranty
  • Efficiency up to 81%
  • Constant voltage / CV
  • Input: 90-264VAC
  • Certifications: UL, CE
  • Dimensions: 118x35x26 mm


LPV-20-12 and LPV-20-24 are perfect for powering low power spotlights or LED strips at constant voltage (up to 15 Watts).

Applications:

  • Camera power supply
  • Resin or IP65 and IP6x waterproof LED strips
  • Outdoor LED spotlight power supply
  • LED module lighting for signs
  • LED display

Our rating:

  • Reliability
  • Price
  • Features
  • [[rating1]]
  • [[rating2]]
  • [[rating3]]

Main technical specifications

MODEL LPV-20-5 LPV-20-12 LPV-20-15 LPV-20-24
Output type Constant Voltage / CV
Output voltage 5V 12V 15V 24V
Nominal output current 3A 1.67A 1.33A 0.84A
Power (Nominal) 20 Watt
Dimmable NO
Max efficiency 77% 81% 83% 83%
Input voltage VAC 90-264VAC
PFC NO
Dimensions 118x35x26 mm

See also:

Download the LED power supply catalogs in the attachments tab.

Attachments

LPV-20_spec

DATASHEET

file_download Download (461.77KB)

LPV-20_LPC-20_cer_CE

CERTIFICATO CE

file_download Download (72.26KB)

LPV-20_LPC-20_cer_CB

CERTIFICATO CB

file_download Download (130.07KB)

Data sheet
Mean Well
LPV-20-5
New
209 Items
4021087006934
5
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
5
12
15
24
Input Voltage VAC
90~264VAC
90~264VAC
Rating
453
Power W
20
IP Protection Grade
IP67
Warranty
2 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
81%
Dimensions
118x35x26 mm
Output Current mA
840
1330
1670
3000
Output Current A
0.84
1.33
1.67
3
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
LPV-20
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
3
MKP
YES
TK-CODE
22/0. [85.0.NO.]/LTT-3
108/0. [280.50.SI.]/LTT-3
166/-11. [564.0.SI.]/LTT-3
562/19. [2017.50.SI.]/LTT-1
List Price
0
