MCHQ200V-GE POS Power LED Power Supply 200W Constant Voltage CV Voltages 12V 24V
zoom_out_map
chevron_left chevron_right

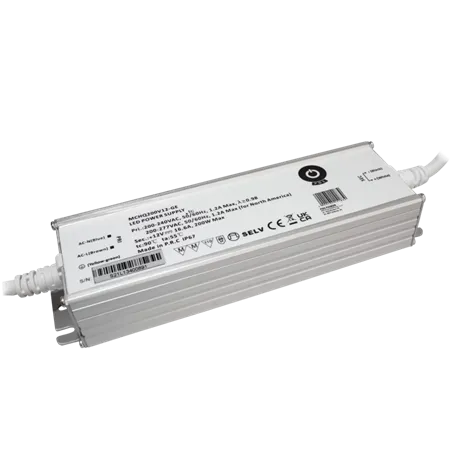

The product image may slightly differ as it is representative of the family and not the model.

MCHQ200V-GE POS Power LED Power Supply 200W Constant Voltage CV Voltages 12V 24V

€34.30 MCHQ200V12-GE
€34.30 MCHQ200V24-GE

€34.30 Tax excluded

€34.30 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €34.30 €34.30
5 €33.61 €168.07
10 €32.93 €329.28
20 €32.24 €644.84
Description

Available models: MCHQ200V12-GE, MCHQ200V24-GE

Features:

• Constant voltage adjustment
• European AC input range (max. 305VAC)
• Integrated active PFC function
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Natural convection cooling
• High overvoltage protection: 4kV - differential mode, 6kV - common mode
• IP67 protection class
• Suitable for dry, humid and rainy environments

Applications:

  • LED street lighting
  • LED lighting

Our rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

Main technical specifications

MODEL MCHQ200V12-GE MCHQ200V24-GE
Output Type Constant Voltage / CV
Output Voltage 12V 24V
Nominal Output Current 16.6A 8.33A
Power 200W 200W
Efficiency 92% 93%
Input Voltage Range 180 ~ 305VAC
Dimmable NO
Working Temperature -40°C to 65°C
PFC YES
Dimensions 220.6 x 62.5 x 41.3mm
Certifications CE, PFC, UKCA, SELV
For purchases and samples CONTACT US

See also:

Download the LED power supply catalogs in the attachments tab.


Discover more information about

Data sheet
POS Power
MCHQ200V12-GE
New
0 Items
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
Input Voltage VAC
180~305VAC
200~240VAC
Operating Temperature
-40°C / +70°C
Rating
453
Power W
200
PFC
YES
Output Voltage Nr.
1
IP Protection Grade
IP67
Mechanical Mounting Format
Closed Metal Container
Efficiency
92%
93%
Dimensions
149 x 40.4 x 26.7mm
Output Current mA
8300
16600
Output Current A
8.3
16.6
Input Connector
Cable
Output Connection
Wired
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
