The product image may slightly differ as it is representative of the family and not the model.

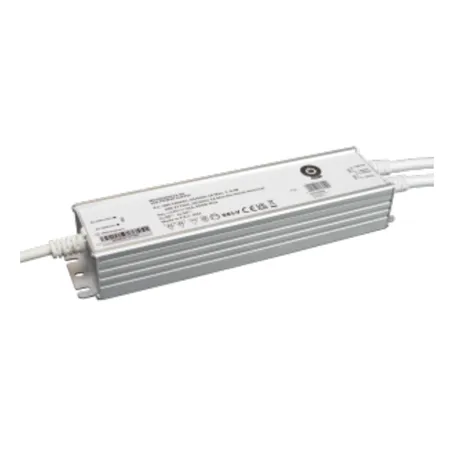

MCHQ350V-GE POS Power LED Power Supply 350W Constant Voltage CV Voltages 12V 24V
Description
Available models: MCHQ350V12-GE, MCHQ350V24-GE
Features:
• Constant voltage regulation
• European AC input range (max. 305VAC)
• Integrated active PFC function
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Natural convection cooling
• High overvoltage protection: 4kV – differential mode, 6kV – common mode
• IP67 protection class
• Suitable for dry, damp and rainy environments
Applications:
- LED street lighting
- LED lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | MCHQ350V24-GE |
|---|---|
| Output type | Constant Voltage / CV |
| Output voltage | 24V |
| Nominal output current | 12.5A |
| Power | 350W |
| Efficiency | 94.6% |
| Input voltage range | 180 ~ 305VAC |
| Dimmable | NO |
| Working temperature | -40°C ÷ 70°C |
| PFC | YES |
| Dimensions | 261 x 62.5 x 41.4mm |
| Certifications | CE, PFC, UKCA, SELV |
| For purchases and samples | CONTACT US |
See also:
Download the Led power supplies catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
- Input Voltage VAC
- 180~305VAC
200~240VAC - Operating Temperature
- -4°F / 113°F
- Rating
- 453
- Power W
- 350
- PFC
- YES
- Output Voltage Nr.
- 1
- IP Protection Grade
- IP67
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 93.5%
- Dimensions
- 149 x 40.4 x 26.7mm
- Output Current mA
- 12500
- Output Current A
- 12.5
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
