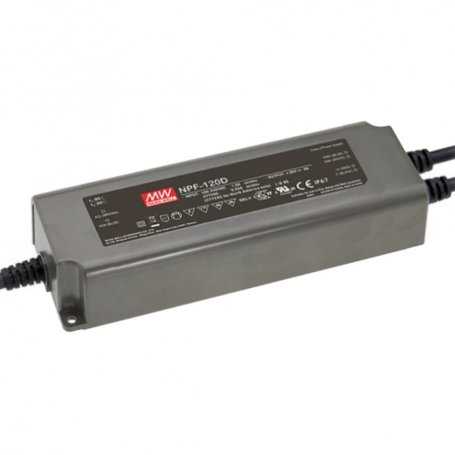

The product image may slightly differ as it is representative of the family and not the model.
NPF-120D Meanwell - 120W LED Power Supply - DC - Currents 2300mA 2500mA 2900mA 3400mA 4000mA 5000mA 6000mA 8000mA 10000mA
Power supplies for Led Mean Well series NPF-120D, power 120Watt, output currents 2.3A, 2.5A, 2.9A, 3.4A, 4A, 5A, 6A, 8A, 10A
LED power supplies Mean Well of the NPF-120D seriesthey are produced with a 5-year warranty, protected by a sturdy plastic structure.
The series NPF-120DIt has a constant current output mode, it has an input voltage range from 90-305 VAC and offers models with various nominal voltages between 12 V and 54 V.
The entire series is classified with an IP67 protection level and is suitable for working in a variety of applications in dry, humid or wet locations.
NPF-120D It is equipped with a 3-in-1 dimming function to provide design flexibility for the LED lighting system.
Features:
- MeanWell LED Power Supply
- Output in Constant Current CC mode
- Class II
- Active PFC function built-in
- Energy consumption in absence of load
- IP67 rating for indoor or outdoor installations
- Typical duration>50000 hours
- Function: 3 in 1 dimming (dim-to-off)
- Auxiliary DC output
- Dimensions: 191x63x37.5mm
- The NPF-120D-xxBE series It has an Auxiliary output: 12Vdc 200mA
- Warranty: 5 years
Applications:
- LED panel lighting
- LED spotlights
- decorative LED lighting
- LED tunnel lighting
Our vote:
- Reliability
- Price
- Characteristics
- [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
- [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
Main technical specifications
MODEL | NPF-120D-12 | NPF-120D-15 | NPF-120D-20 | NPF-120D-24 | NPF-120D-30 | NPF-120D-36 | NPF-120D-42 | NPF-120D-48 | NPF-120D-54 | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Type of exit | Constant Current / CC | |||||||||||||||||||||||||||||||
Constant current output | 7.2 ~ 12V | 9 ~ 15V | 12 ~ 20V | 14.4 ~ 24V | 18 ~ 30V | 21.6 ~ 36V | 25.2 ~ 42V | 28.8 ~ 48V | 32.4 ~ 54V | |||||||||||||||||||||||
Nominal Output Current | 10A | 8A | 6A | 5A | 4A | 3.4A | 2.9A | 2.5A | 2.3A | |||||||||||||||||||||||
Power (Rated) | 120W | 120W | 120W | 120W | 120W | 122.4W | 121.8W | 120W | 124.2W | |||||||||||||||||||||||
Blank Type Efficiency | 87.5% | 88% | 89% | 89.5% | 89% | 89.5% | 89.5% | 90% | 90% | |||||||||||||||||||||||
Efficiency Be Type | 87.5% | 87.5% | 88.5% | 89% | 88.5% | 89% | 89% | 89% | 89% | |||||||||||||||||||||||
Input voltage range | 90 ~ 305VAC | |||||||||||||||||||||||||||||||
ExitNPF-120D-xxBE series | 12VDC 200mA | |||||||||||||||||||||||||||||||
Dimmable | YES | |||||||||||||||||||||||||||||||
Working temperature | -40 ~ +90 °C | |||||||||||||||||||||||||||||||
PFC | YES | |||||||||||||||||||||||||||||||
Dimensions | 191x63x37.5mm | |||||||||||||||||||||||||||||||
Protection Degree | IP67 | |||||||||||||||||||||||||||||||
Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||||||||||
For purchases and sampling | CONTACT US |
See also:
Download the LED power supply catalogs in the attachments tab.
- Output Regulation Type
- Constant Current / CC
- Output Voltage VDC
- 12
15
20
24
30
36
42
48
54 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -40°C / +90°C
- Rating
- 453
- Power W
- 120
- PFC
- Yes
- IP Protection Grade
- IP67
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 191x63x37.5mm
- Output Current mA
- 2300
2500
2900
3400
4000
5000
6000
8000
10000 - Output Current A
- 2.3
2.5
3.4
4
5
6
8
10 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- It appears that "NPF" is not a recognizable word or phrase in Italian. Could you please provide more context or clarify what you mean by "NPF"? This will help me provide a more accurate translation.
