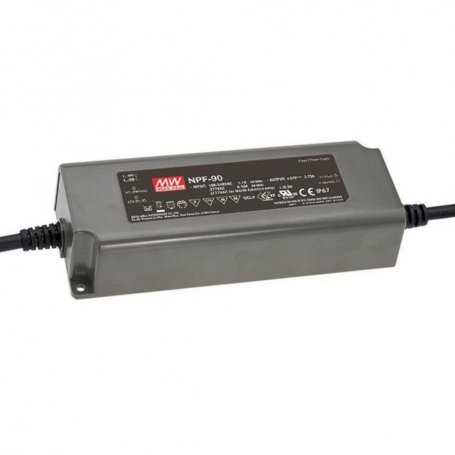

The product image may slightly differ as it is representative of the family and not the model.
NPF-90 Meanwell - 90W LED Power Supply - Constant Voltage CV Constant Current CC
Description
Available models: NPF-90-12, NPF-90-15, NPF-90-20, NPF-90-24, NPF-90-24EU (white case vers.), NPF-90-30, NPF-90-36, NPF-90-42, NPF-90-48, NPF-90-48, NPF-90-54
The LED power supplies from Mean Well series NPF-90 are products with a 5-year warranty, protected by a robust plastic structure.
The NPF-90 series has a constant voltage and constant current output mode, it has an input voltage range from 90-305 VAC and offers models with different nominal voltages ranging from 12 V to 54 V.
The entire series is rated with IP67 protection level and is suitable to work for a variety of applications in dry, humid or wet places.
Features:
- MeanWell LED Driver
- Output in Constant Voltage CV + Constant Current CC mode
- Class II (except NPF-90-12 / 15)
- Built-in active PFC function
- No-load power consumption
- IP67 rating for indoor or outdoor installations
- Typical lifespan>50000 hours
- Dimensions: 171x63x37.5mm
- Warranty: 5 years
Applications:
- LEDD panel lighting
- LED spotlights
- LED decorative lighting
- LED tunnel lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main Technical Specifications
| MODEL | NPF-90-12 | NPF-90-15 | NPF-90-20 | NPF-90-24 | NPF-90-30 | NPF-90-36 | NPF-90-42 | NPF-90-48 | NPF-90-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Current / CC + Constant Voltage / CV | |||||||||||||||||||||||||||||||
| DC output voltage | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |||||||||||||||||||||||
| Nominal output current | 7.5A | 6A | 4.5A | 3.75A | 3A | 2.5A | 2.15A | 1.88A | 1.67A | |||||||||||||||||||||||
| Power (Nominal) | 90W | 90W | 90W | 90W | 90W | 90W | 90.3W | 90.24W | 90.18W | |||||||||||||||||||||||
| Efficiency | 89% | 89.5% | 90.5% | 91% | 89.5% | 90.5% | 90.5% | 90.5% | 90.5% | |||||||||||||||||||||||
| Input voltage range | 90 ~ 305VAC | |||||||||||||||||||||||||||||||
| Dimmable | NO | |||||||||||||||||||||||||||||||
| Operating temperature | -40 ~ +85 °C | |||||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||||
| Dimensions | 171x63x37.5mm | |||||||||||||||||||||||||||||||
| Protection degree | IP67 | |||||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||||
See also:
Download the LED driver catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Output Voltage VDC
- 12
15
20
24
30
36
42
48
54 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -40°C / +85°C
- Rating
- 453
- Power W
- 90
- PFC
- Yes
- IP Protection Grade
- IP67
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90.5%
- Dimensions
- 171x63x37.5mm
- Output Current mA
- 1670
1880
2150
2500
3000
3750
4500 - Output Current A
- 1.67
1.88
2.5
2.15
3
3.75
4.5
6
7.5 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
