OWA-120E-42  OWA-120E-42 Alimentatore LED MeanWell - CV/CC - 120W / 42V / 2900mA   Mean Well  Alimentatori LED
zoom_out_map
chevron_left chevron_right

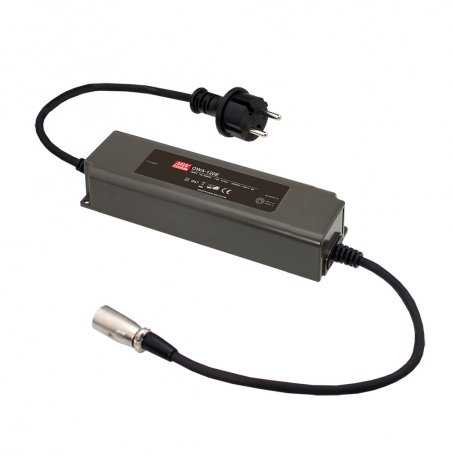

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

OWA-120E-42 Meanwell - LED Power Supply CV/CC - 120W 42V 2900mA

€69.37 Tax excluded

€69.37 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €69.37 €69.37
5 €67.98 €339.91
10 €66.60 €665.95
20 €65.21 €1,304.16
Description
  • LED MeanWell Power Supply
  • Constant Voltage CV
  • Input: 180~264VAC
  • Power: 120W
  • Output: 42Vdc - 2.9A
  • LED MeanWell Power Supply
  • Constant Voltage CV
  • Input: 180~264VAC
  • Power: 120W
  • Output: 42Vdc - 2.9A

  • Active PFC
  • Energy Efficiency: VI
  • Standby Power Consumption <0.5watt
  • Protections: Short Circuit / Overload / Overvoltage / Overheating
  • Class II
  • Insulated Plastic Encapsulated
  • Fanless
  • Warranty: 5 years
  • Designed to withstand moisture and dust
Data sheet
Mean Well
OWA-120E-42
New
Output Regulation Type
Constant Current / CC
Constant Voltage / CV
Output Voltage VDC
42
Input Voltage VAC
190~264VAC
190~264VAC
Operating Temperature
-40°C / +70°C
Power W
120
IP Protection Grade
IP67
Mechanical Mounting Format
Closed Plastic Container
Efficiency
90.5%
Dimensions
191 x 63 x 37.5 mm
Output Current mA
2900
Output Current A
2.9
Input Connector
Cable
Output Connection
Wired
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
OWA
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
78.0
