OWA-60E-42  OWA-60E-42 Alimentatore LED MeanWell - CV/CC - 60W / 42V / 1500mA   Mean Well  Alimentatori LED
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

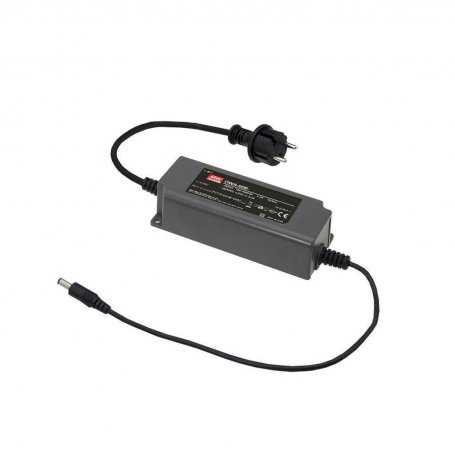

OWA-60E-42 Meanwell - LED Power Supply CV/CC - 60W 42V 1500mA

€37.03 Tax excluded

€37.03 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €37.03 €37.03
5 €36.29 €181.45
10 €35.55 €355.49
20 €34.81 €696.16
Description
  • LED MeanWell Power Supply
  • Constant Voltage CV
  • Input: 90~264VAC
  • Power: 63W
  • Output: 42Vdc - 1.5A
  • LED MeanWell Power Supply
  • Constant Voltage CV
  • Input: 90~264VAC
  • Power: 63W
  • Output: 42Vdc - 1.5A

  • Standby Power Consumption <0.5 watt
  • Protections: Short Circuit / Overload / Overvoltage / Overheating
  • Class II
  • Insulated Plastic Encapsulated
  • Fanless
  • Warranty: 5 years
  • Designed to withstand moisture and dust
Data sheet
Mean Well
OWA-60E-42
New
Output Regulation Type
Constant Current / CC
Constant Voltage / CV
Output Voltage VDC
42
Input Voltage VAC
90~264VAC
90~264VAC
Operating Temperature
-30°C / +70°C
Power W
60
IP Protection Grade
IP67
Mechanical Mounting Format
Closed Plastic Container
Efficiency
90%
Dimensions
130 x 53 x 35 mm
Output Current mA
1500
Output Current A
1.5
Input Connector
Cable
Output Connection
Wired
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
OWA
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
ON REQUEST
MKP
NO
TK-CODE
0/0. [0.0.NO.]/LTT-ON REQUEST
List Price
41.5
