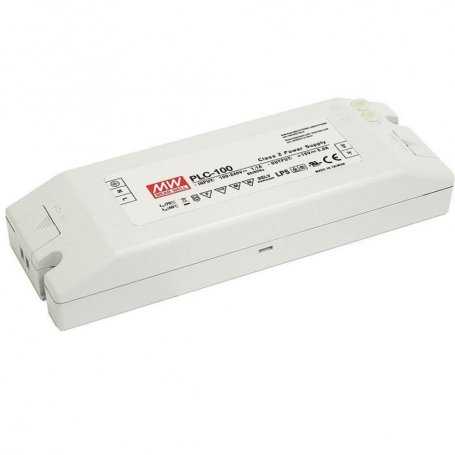

The product image may slightly differ as it is representative of the family and not the model.
PLC-100 Meanwell LED Power Supply 100W Constant Current DC 2000mA 2650mA 3550mA 4000mA 4800mA 5000mA
Description
Power supplies for Led Mean Well series PLC-100, power 100Watt, nominal current 2000mA, 2650mA, 3550mA, 4000mA, 4800mA, 5000mA
The LED power supplies Mean Well of the PLC-100 series are entry level products, with 2 years warranty, protected by a durable insulated plastic structure.
Features:
- MeanWell LED Power Supply
- Constant Current / DC
- Universal AC input
- High efficiency at 88.5% and high reliability
- Adjustable output voltage and current level
- Protections: short circuit, overcurrent, overvoltage, overtemperature
- Free air convection cooling
- Class II power unit
- 100% full load burn-in test
- Suitable for LED lighting and mobile signage applications
- Power: 100W
- Built-in active PFC function
- Compliance with global safety standards for lighting
- Input: 90 ~ 264VAC,127 ~ 370VDC
- Dimensions: 200.5x69.5x35mm
- Warranty: 2 years
Applications:
- Camera power supply
- Led strips
- Led spotlight power supply
- Suitable for LED lighting and mobile signage applications
- Led modules lighting for signs
- Led display
Our rating:
- Reliability
- Price
- Features
-
- [[vote1]]
- [[vote2]]
- [[vote3]]
Mechanical Features
Main technical specifications
| MODEL | PLC-100-12 | PLC-100-15 | PLC-100-20 | PLC-100-24 | PLC-100-27 | PLC-100-36 | PLC-100-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Type |
Constant Current / DC |
|||||||||||||||||||||||||||||
| DC Output Voltage | 12V | 15V | 20V | 24V | 27V | 36V | 48V | |||||||||||||||||||||||
| Constant Current Output | 9 ~ 12V | 11.25 ~ 15V | 15 ~ 20V | 18 ~ 24V | 20.25 ~ 27V | 27 ~ 36V | 36 ~ 48V | |||||||||||||||||||||||
| Nominal Output Current | 5A | 5A | 4.8A | 4A | 3.55A | 2.65A | 2A | |||||||||||||||||||||||
| Power (Nominal) | 60W | 75W | 96W | 96W | 95.85W | 95.4W | 96W | |||||||||||||||||||||||
| Efficiency | 83% | 85% | 88.5% | 88.5% | 88% | 88% | 88.5% | |||||||||||||||||||||||
| Input voltage range | 90 ~ 264VAC 127 ~ 370VDC | |||||||||||||||||||||||||||||
| Dimmable | NO | |||||||||||||||||||||||||||||
| Input leakage current | ||||||||||||||||||||||||||||||
| Working Temperature | -30 ~ +50 °C | |||||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||||
| Dimensions | 200.5x69.5x35mm | |||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC | |||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||||
See also:
Download the LED power supplies catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 90 ~ 264VAC
90 ~ 264VAC - Operating Temperature
- -30°C / +50°C
- Rating
- 453
- Power W
- 100
- PFC
- Yes
- Warranty
- 2 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 88.50%
- Dimensions
- 200.5x69.5x35mm
- Output Current mA
- 2000
2650
3550
4000
4800
5000 - Output Current A
- 2
2.65
3.55
4
4.8
5 - Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
