PLC-30 Meanwell LED Power Supply 30W DC currents 630mA 840mA 1120mA 1250mA 1500mA 2000mA 2500mA 3300mA
zoom_out_map
chevron_left chevron_right

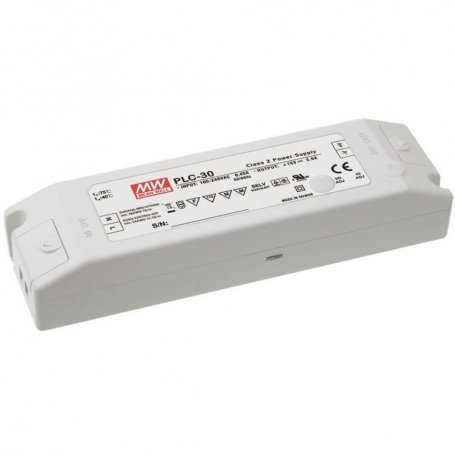

The product image may slightly differ as it is representative of the family and not the model.

PLC-30 Meanwell LED Power Supply 30W DC currents 630mA 840mA 1120mA 1250mA 1500mA 2000mA 2500mA 3300mA

€28.00 PLC-30-9
€21.49 PLC-30-12
€28.00 PLC-30-15
€28.00 PLC-30-20
€30.31 PLC-30-24
€28.00 PLC-30-27
€28.00 PLC-30-36
€28.00 PLC-30-48

€28.00 Tax excluded

€28.00 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €28.00 €28.00
5 €27.44 €137.20
10 €26.88 €268.80
20 €26.32 €526.40
Description

Power supplies for Led Mean Well series PLC-30, power 30Watt, nominal current 630mA, 840mA, 1120mA, 1250mA, 1500mA, 2000mA, 2500mA, 3300mA

LED power supplies Mean Well of the PLC-30 seriesThese are entry-level products, with a 2-year warranty, protected by a durable insulated plastic structure.

Features:

  • MeanWell LED Power Supply
  • Constant Current / CC
  • Universal AC input
  • High efficiency at 85.5%
  • Adjustable output voltage and current level
  • Protections: short circuit, overcurrent, overvoltage, overtemperature
  • Free air convection cooling
  • Fully insulated plastic case with I / O terminal block style
  • Class II power unit, no FG
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and mobile signage applications
  • Power: 30W
  • Active PFC function built-in, compliant with EN61000-3-2 class C (Pin ≥25W)
  • Compliance with global safety regulations for lighting
  • Input: 90 ~ 264VAC,127 ~ 370VDC
  • Dimensions: 160x46x30mm
  • Warranty: 2 years

Applications:

  • Powering video cameras
  • Led strips
  • LED spotlight power supply
  • Suitable for LED lighting and mobile signage applications
  • LED module lighting for signs
  • LED display

Our vote:

  • Reliability
  • Price
  • Characteristics
    • [[voto1]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto2]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.
    • [[voto3]You haven't provided any Italian text to translate. Please provide the text you want to be translated into English.

Mechanical Features

Caratteristiche-Meccaniche

Main technical specifications

MODELPLC-30-9PLC-30-12PLC-30-15PLC-30-20PLC-30-24PLC-30-27PLC-30-36PLC-30-48
Type of exit

Constant Current / CC

DC Output Voltage 9V 12V 15V 20V 24V 27V 36V 48V
Constant Current Output 6 6.3 ~ 9V 8.4 ~ 12V 10.5 ~ 15V 14 ~ 20V 16.8 ~ 24V 18.9 ~ 27V 25.2 ~ 36V 33.6 ~ 48V
Nominal Output Current 3.3A 2.5A 2A 1.5A 1.25A 1.12A 0.84A 0.63A
Power (Rated) 29.7W 30W 30W 30W 30W 30.24W 30.24W 30.24W
Efficiency 80% 82.5% 83.5% 84% 84% 84.5% 85% 85.5%
Input voltage range 90 ~ 264VAC 127 ~ 370VDC
Dimmable NO
AC input current 0.4A/115VAC 0.2A/230VAC
Input leakage current
PFC YES
Dimensions 160x46x30mm
Certifications CE, CB, EAC
For purchases and sampling CONTACT US

See also:

Download the LED power supply catalogs in the attachments tab.


Discover more information about

Data sheet
Mean Well
PLC-30-9
New
0 Items
Output Regulation Type
Constant Current / CC
Input Voltage VAC
90 ~ 264VAC
90 ~ 264VAC
Operating Temperature
-30°C / +50°C
Rating
453
Power W
30
PFC
Yes
Warranty
2 Years
Mechanical Mounting Format
Closed Plastic Container
Efficiency
85.5%
Dimensions
160x46x30mm
Output Current mA
630
840
1120
1250
1500
2000
2500
3300
Output Current A
0.63
0.84
1.5
1.12
1.25
2
2.5
3.3
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Certifications
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
PLC stands for "Programmable Logic Controller" in English. It refers to an industrial digital computer designed for the control and automation of manufacturing processes, such as assembly lines, robotic devices, or any activity that requires high-reliabil
