The product image may slightly differ as it is representative of the family and not the model.

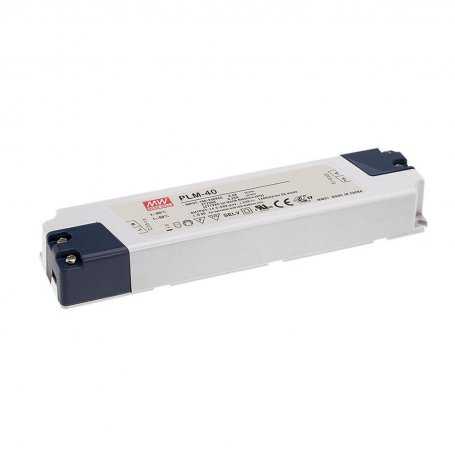

PLM-40-700 - Meanwell - LED Power Supply CC - 40W 700mA
Description
- LED Power Supply MeanWell
- Constant Current DC
- Input: 110~295VAC
- Power: 40W
- DC Output Voltage: 29~57Vdc
- Output Current: 700mA
- LED MeanWell Power Supply
- Constant Current DC
- Input: 110~295VAC
- Power: 40W
- DC Output Voltage: 29~57Vdc
- Output Current: 700mA
- Active PFC
- Protections: Short Circuit
- Fully Insulated Plastic Encapsulated
- Class II
- Designed for LED Lighting
- Standby Power Consumption <0.5watt
- Warranty: 2 years
Data sheet
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 110~295VAC
110~295VAC - Power W
- 40
- IP Protection Grade
- IP30
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 87%
- Dimensions
- 175 x 42 x 24 mm
- Output Current mA
- 700
- Output Current A
- 0.7
- Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- PLM stands for "Product Lifecycle Management." It refers to the process of managing the entire lifecycle of a product from its initial concept, through design and manufacture, to service and disposal.
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 3
- MKP
- YES
- TK-CODE
- 51/0. [204.0.NO.]/LTT-3
- List Price
- 22.5
