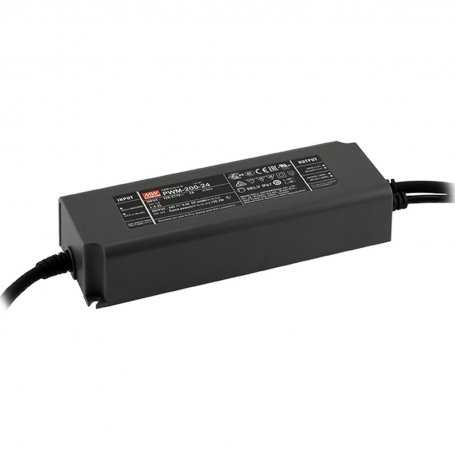

The product image may slightly differ as it is representative of the family and not the model.
PWM-200 Meanwell - 200W LED Power Supply - Constant Voltage CV - Dimmable - Voltage 24V
PWM-200 Meanwell - LED Power Supply 200W - Constant Voltage CV - Dimmable - Voltage 24V
The LED power supplies by Mean Well from the PWM-200 series come with a 5-year warranty and are protected by a durable plastic structure.
The PWM-200 series has a constant voltage output mode, has an input voltage range from 100-305 VAC and is capable of maintaining the color temperature and brightness uniformity when driving all types of LED strips.
The entire series is rated with an IP67 protection level and is suitable for working for a variety of applications in dry, humid or wet places.
PWM-200 is equipped with a 3 in 1 dimming function that varies the duty cycle of the output, providing great flexibility for LED strip applications.
Features:
- MeanWell LED Power Supply
- Constant voltage PWM style
- Class II
- Emergency lighting application is available according to IEC61347-2-13
- Built-in active PFC function
- No-load power consumption
- IP67 protection rating
- Typical lifespan>50000 hours
- Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
- Minimum dimming level 0.2% for DALI2 type
- LED panel lighting
- LED spotlights
- Indoor LED lighting
- Decorative LED lighting
- LED tunnel lighting
Our rating:
- Reliability
- Price
- Features
- [[vote1]
- [[vote2]
- [[vote3]
Main technical specifications
| MODEL | PWM-200-24 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Voltage / CV | |||||||||||||||||||||||
| DC output voltage | 24V | |||||||||||||||||||||||
| Nominal output current | 8.3A | |||||||||||||||||||||||
| Power (Nominal) | 199.8W | |||||||||||||||||||||||
| Efficiency | 94% | |||||||||||||||||||||||
| Input voltage range | 100 ~ 305VAC | |||||||||||||||||||||||
| Working temperature | -40 ~ +85 °C | |||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||
| Dimensions | 195x68x39.5mm | |||||||||||||||||||||||
| Protection Rating | IP67 | |||||||||||||||||||||||
| Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||
Also see:
Download the LED power supply catalogs in the attachments tab.
- Dimming LED
- Dali
PWM
Push - Led Dimming (interface)
- Dali
PWM
Push - Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
- Input Voltage VAC
- 90~305VAC
100~305VAC - Operating Temperature
- -40°C / +85°C
- Rating
- 453
- Power W
- 200
- PFC
- Yes
- IP Protection Grade
- IP67
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 93%
- Dimensions
- 195x68x39.5mm
- Output Current mA
- 8300
- Output Current A
- 8.3
- Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- PWM
