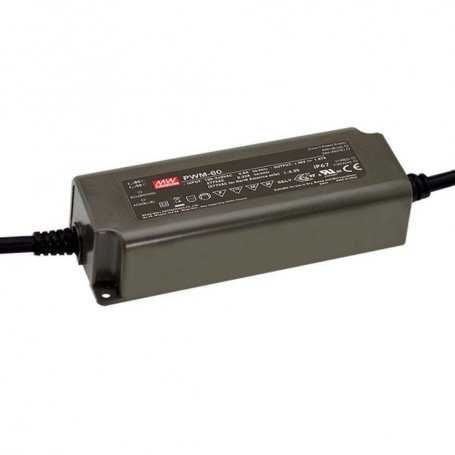

The product image may slightly differ as it is representative of the family and not the model.
PWM-60 Meanwell - 60W LED Power Supply - Constant Voltage CV - Dimmable - Voltages 12V. 24V. 36V. 48V
Power supplies for Led Mean Well series PWM-60, power 60Watt, output voltages 12V, 24V, 36V, 48V
The LED power supplies for Mean Well from the PWM-60 series are products with a 5-year warranty, protected by a sturdy plastic structure.
The PWM-60 series has a constant voltage output mode, has an input voltage range of 90-305 VAC and offers models with various nominal voltages between 12 V and 48 V, capable of maintaining color temperature and brightness uniformity when driving all types of LED strips.
The entire series is classified with IP67 protection level and is suitable for working for a variety of applications in dry, moist or wet places.
PWM-60 is equipped with the 3 in 1 dimming function that varies the duty cycle of the output, providing great flexibility for LED strip applications.
Features:
- MeanWell LED Power Supply
- PWM style constant voltage
- Class II
- Emergency lighting application is available according to IEC61347-2-13
- Built-in active PFC function
- No load power consumption
- IP67 protection grade
- Typical lifespan>50000 hours
- Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
- Minimum dimming level 0.2% for DALI type
- The PWM-60-24DA and PWM-60-24DA2 series are DALI dimmable (24DA2 DALI2 dimmable)
- Protections from: overload, short circuit, overvoltage, overtemperature
- Dimensions: 150x53x35mm
- Warranty: 5 years
Applications:
- LED panel lighting
- LED spotlights
- Indoor LED lighting
- Decorative LED lighting
- LED tunnel lighting
Our rating:
- Reliability
- Price
- Features
- [[rating1]]
- [[rating2]]
- [[rating3]]
Main technical specifications
MODEL | PWM-60-12 | PWM-60-24 | PWM-60-36 | PWM-60-48 | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Output type | Constant Voltage / CV | ||||||||||||||||||||||||||
DC output voltage | 12V | 24V | 36V | 48V | |||||||||||||||||||||||
Nominal output current | 5A | 2.5A | 1.67A | 1.25A | |||||||||||||||||||||||
Power (Nominal) | 60W | 60W | 60.12W | 60W | |||||||||||||||||||||||
Efficiency | 86% | 89% | 90% | 90% | |||||||||||||||||||||||
Input voltage range | 90 ~ 305VAC | ||||||||||||||||||||||||||
PWM-60-24DA series | DALI Dimmable | ||||||||||||||||||||||||||
Dimmable | PWM - 1/10Vdc - Resistance | ||||||||||||||||||||||||||
Operating temperature | -40 ~ +85 °C | ||||||||||||||||||||||||||
PFC | YES | ||||||||||||||||||||||||||
Dimensions | 150x53x35mm | ||||||||||||||||||||||||||
Protection Grade | IP67 | ||||||||||||||||||||||||||
Certifications | CE, CB, EAC, CCC | ||||||||||||||||||||||||||
For purchases and samples | CONTACT US |
See also:
Download the LED power supply catalogs in the attachments tab.
- Dimming LED
- 1/10V
Dali
KNX
PWM
Resistor (Ohm) - Led Dimming (interface)
- 1/10V
Dali
PWM - Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
36
48 - Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -40°C / +85°C
- Rating
- 453
- Power W
- 60
- PFC
- Yes
- IP Protection Grade
- IP67
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 90%
- Dimensions
- 150x53x35mm
- Output Current mA
- 1250
1670
2500
5000 - Output Current A
- 1.25
1.67
2.5
5 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- PWM
