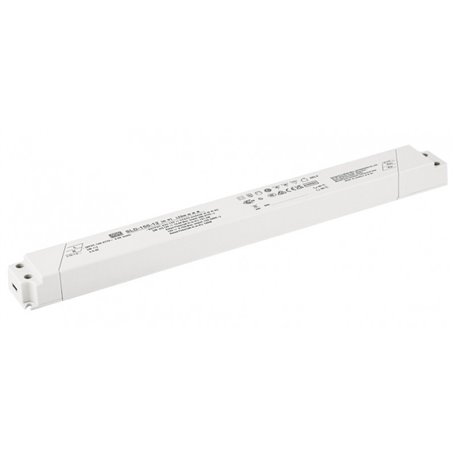

The product image may slightly differ as it is representative of the family and not the model.
SLD-150 Meanwell - 150W LED Driver - Constant Voltage CV Constant Current CC - Ultra slim
The SLD-150 series offers 150W AC/DC LED drivers in two modes for constant voltage and constant current applications. The SLD-150 operates with voltages between 120V and 305V AC and offers models with various nominal voltage values, ranging from 12V to 56V.
Features:
- Delivery in constant voltage + constant current mode (12/24V)
- Delivery in constant power mode (56V)
- Wide input range 120-305VAC with PFC function
- Compliance with BS EN/EN61347/EN60335-1 standards
- Class II power supply unit
- Slim and compact case design
- 5-year warranty
- No-load power consumption
The series SLD-150 offers AC/DC LED drivers 150WWith two modes for applications tension constant and current constant. The SLD-150 operates with voltages ranging between 120V and 305V AC and offers models with different nominal voltage values, ranging from 12V to 56V. The 12V and 24V models are perfect for constant voltage LED strips or household devices, while the 56V model supports constant current applications. Thanks to the high efficiency up to 93% and to the design deprived of fans, the entire series is able to operate at ambient temperatures ranging between -25°C and +85°C.
The compact and slim design of the SLD-150 series is suitable for applications such as signage and decorative lighting.
Applications:
- LED Strips
- Decorative lights
- Wardrobes
- Signage
- Lighting appliances
Our vote:
- Reliability
- Price
- Features
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Main technical specifications
| MODEL | SLD-150-12 | SLD-150-24 | SLD-150-48 |
|---|---|---|---|
| Type of exit | Constant Current / CC + Constant Voltage / CV | ||
| DC output voltage | 12V | 24V | 24V-56V |
| Nominal Output Current | 12A | 6.3A | 2.6A-4.1A |
| Power (Nominal) | 144W | 151.2W | 151.2W |
| Efficiency | 92% | 93% | 93% |
| Input voltage range | 120 ~ 305VAC | ||
| Dimmable | NO | ||
| Working temperature | -25 ~ +85 °C | ||
| PFC | YES | ||
| Dimensions | 330x35x22mm | ||
| Certifications | CE, CB, EAC, CCC | ||
| For purchases and sampling | CONTACT US | ||
See also:
Download the LED power supply catalogs in the attachments tab.
- Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Output Voltage VDC
- 12,24,24-56
- Input Voltage VAC
- 120 - 305VAC
120 - 305VAC - Operating Temperature
- -25°C / +85°C
- Rating
- 453
- Power W
- 150
- PFC
- Yes
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 92%
93% - Dimensions
- 330x35x22mm
- Output Current mA
- 12,000, 6,300, 2,680-4,170
- Output Current A
- 12, 6.3, 2.6-4.1
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
