V6E Moso Alimentatore LED 240W Tensione Costante CV 24V - 36V
zoom_out_map
chevron_left chevron_right

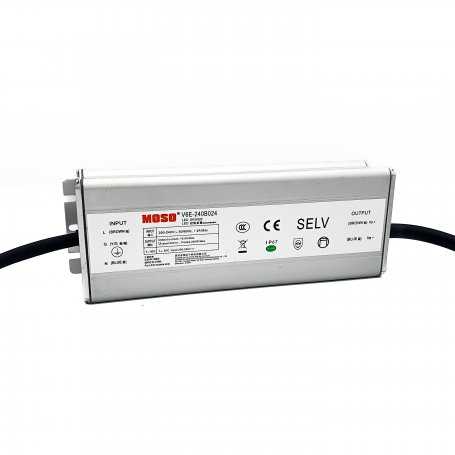

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

V6E Moso LED Power Supply 240W Constant Voltage CV 24V - 36V

€37.80 The text "V6E-240B024" appears to be a code or model number and does not need translation as it would remain the same in English
€37.80 V6E-240B036

€37.80 Tax excluded

€37.80 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €37.80 €37.80
5 €37.04 €185.22
10 €36.29 €362.88
20 €35.53 €710.64
Description

Available models: V6E-240B024, V6E-240B036

The V6E-240 series offers constant voltage LED drivers, suitable for indoor/outdoor lighting systems and ambient lighting. The power supply features active PFC, protections against short circuit, overload and overtemperature, immunity to 10KV overcurrent.

The product is reliable and efficient in the long run.

Features:

  • Input voltage range: 176-264VAC
  • Constant voltage output
  • PF>0.97
  • Overcurrent protection: 6KV line-line, 10KV line-ground;
  • Protections: SCP, OVP, OTP;
  • IP67 for indoor and outdoor applications
  • Perfect for both dry and potentially humid applications
  • 5 year warranty

Applications:

  • LED lighting

Our rating:

  • Reliability
  • Price
  • Features
    • [[voto1]
    • [[voto2]
    • [[voto3]



Main technical specifications

MODEL V6E-240B024 V6E-240B036
Input voltage 176V-264VAC
Output voltage 24V 36V
Nominal output current 0-10A 0-6.7A
Power (Nominal) 240W
Efficiency  93% 94%
Operating temperature -40 ~ +90 °C
Dimensions 193.5x67.2x37mm
For purchases and samples CONTACT US

See also:

Download the LED power supply catalogs in the attachments tab.


Discover more information about

Data sheet
Moso
V6E-240B024
New
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
24
36
Operating Temperature
-40°C / +90°C
Rating
453
Power W
240
IP Protection Grade
IP67
Mechanical Mounting Format
Closed Metal Container
Efficiency
93%
94%
Dimensions
193.5x67.2x37 mm
Output Current mA
6700
10000
Output Current A
6.7
10
Input Connector
Cable
Output Connection
Wired
Certifications
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
