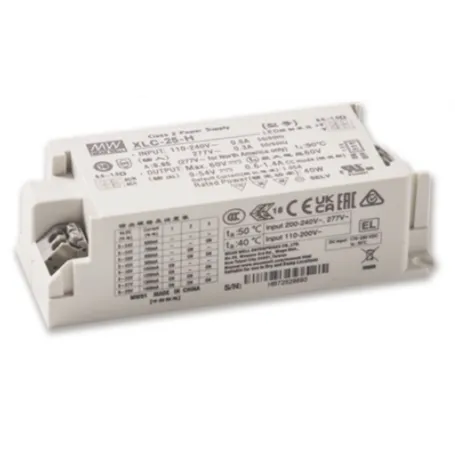

The product image may slightly differ as it is representative of the family and not the model.
XLC-25 MeanWell - LED Power Supplies CV and Constant Power - 25 W - 12V, 24V - 3in1 Dimmable - DALI-2 - Push
Description
The XLC-25 series offers 25W models with constant power and constant voltage output. It can operate with voltages between 110V and 305V AC and a selectable output current through NFC settings, ranging from 300mA to 1050mA through DIP switch or NFC. Thanks to its high efficiency, up to 88%, it can operate at temperatures ranging from -25°C to 90°C with free air convection. The XLC-25 is designed in accordance with the latest safety regulations with 3-in-1 dimmer functionality and DALI-2. XLN-25 can also be adjusted via push, offering design flexibility for LED lighting applications.
Features:
- Constant power mode with selectable output through NFC setting (Model H)
- Constant voltage output mode (12V/24V)
- Plastic case with Class II / IP67 design
- Flicker-free, compliant with IEC 61789/ERP
- Power consumption in standby mode
- Emergency lighting application (EL)
- Fully encapsulated with IP67
- Minimum regulation level 0.1% (DALI-2 DT6)
- Dimmer functions: Dim-to-Off (Switch off with dimmer), DALI-2 + Push dimmer
- 5-year warranty

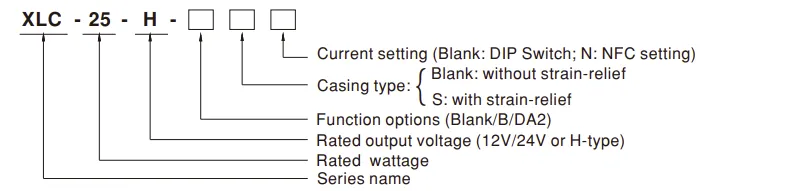

| MODEL | XLC-25-12-[] | XLC-25-24-[] | XLC-25-H-[][][] |
| Output Adjustment | CV | CP | |
| Output Voltage | 12V | 24V | 9-54V |
| Output Current | 2.1A | 1.05A | 0.3 - 10.5A via NFC |
| Power | 25W | ||
| Dimmable | 3 in 1 - DALI-2 - Push | ||
| Input Voltage | 100 ~ 305VAC | ||
| PFC | YES | ||
| Efficiency | 86% | 88% | 88% |
| Dimensions | 147*40*32mm | ||
Data sheet
- Dimming LED
- 0/10V
Dali
PWM
Resistor (Ohm) - Led Dimming (interface)
- 0/10V
1/10V
Dali
PWM - Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Power Supply Type
- Constant Current / CC
Constant Voltage / CV - Input Voltage VAC
- 110 ~ 305VAC
- Operating Temperature
- -25° - +90° C
- Power W
- 40
- PFC
- Yes
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 86%
88% - Dimensions
- 147*40*32mm
- Output Current mA
- 700
1000
2100 - Output Current A
- 0.7
1.05
2.1 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220
