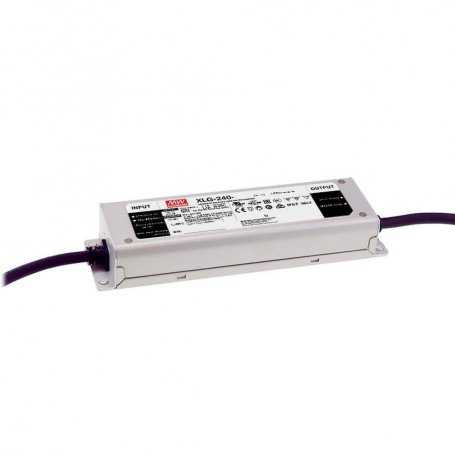

XLG-240 MeanWell - LED Power Supplies CV/CC - 240 Watt 700~6660mA - Dimmable
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

XLG-240 MeanWell - LED Power Supplies CV/CC - 240 Watt 700~6660mA - Dimmable

€54.11 XLG-240-H-AB
€42.70 XLG-240-L-AB
€52.43 XLG-240-M-AB
€39.06 XLG-240-L-A
€37.52 XLG-240-M-A
€37.80 XLG-240-H-A
€49.84 XLG-240-48-ABV
€41.58 XLG-240-L-DA2
€41.58 XLG-240-M-DA2
€41.58 XLG-240-H-DA2

€54.11 Tax excluded

€54.11 Tax excluded

check Available

Buy it now and receive it 9/25/24 with TNT Express

Quantity Unit price Total price Buy
1 €54.11 €54.11
5 €53.03 €265.14
10 €51.95 €519.46
20 €50.86 €1,017.27
Description

LED Power Supplies XLG-240 Series

240W LED Driver, AC/DC with constant current ranging from 700mA to 6660mA.



- Extended input range 100~305VAC
- Full power output 70~100%, in Constant Power mode
- Metal case with IP67, suitable for outdoor applications
- Surge protection 6KV/4KV (10KV/6KV optional)
- Dimmable 3 in 1
- Tested with input voltage of 440Vac for 48 hours

- Protections:

  • OVP- Overvoltage Voltage Protection= Output Overvoltage Protection
  • SCP- Short Circuit Protection
  • OCP- Over Current Protection= Output Overcurrent Protection
  • OTP- Over Temperature Protection























The ABV version is specifically designed without flicker for agricultural applications and LED strips.

Also available in DALI-2 dimmable version (DA2 in L/M/H versions)

MODEL XLG-240-L XLG-240-M XLG-240-H XLG-240-48-ABV XLG-240-L-DA2 XLG-240-M-DA2 XLG-240-H-DA2
OUTPUT TYPE DC DC DC CV CV+CC CV+CC CV+CC
OUTPUT VOLTAGE 178~342V 90~171V 27~56V 48V 178~342V 90~171V  27~56V
OUTPUT CURRENT (700) 700~1050mA*
 (1400) 1400~2100mA* (4900) 4280~6660mA* 5A 700~1050mA 1400~2100mA 4280~6660mA
POWER 239.4W 239.4W 239.6W 240W 239.4W 239.4W 239.6W
DIMMABLE

A: Potentiometer; AB: 3 IN 1 (0~10 Vdc, 10V PWM signal and resistance)

3 IN 1

DALI-2

DALI-2

DALI-2
INPUT 100~305VAC
PFC YES
EFFICIENCY 93% 92.5% 91 91% 94% 93.5% 93%

* Region P=100%

Attachments

XLG-240 Datasheet V2

file_download Download (1.19MB)

XLG-240-DA2 Datasheet V2

file_download Download (680.18KB)

Data sheet
Mean Well
XLG-240-H-AB
New
56 Items
4021087051507
5
Dimming LED
0/10V
Dali
PWM
Potentiometer
Resistor (Ohm)
Led Dimming (interface)
0/10V
Dali
PWM
Potentiometer
Output Regulation Type
Constant Current / CC
Constant Voltage / CV
Power Supply Type
Constant Current / CC
Constant Voltage / CV
Output Voltage VDC
12
24
Input Voltage VAC
90~264VAC
90~264VAC
Operating Temperature
-40°C / +90°C
Power W
96
PFC
Yes
IP Protection Grade
IP67
Mechanical Mounting Format
Perforated Metal Container
Efficiency
92%
Dimensions
199x63x35.5 mm
Output Current mA
5
350
500
665
700
1050
1400
1700
2000
2500
2780
4900
6600
Output Current A
0.5
0.7
0.35
1.05
1.4
1.7
2
2.5
2.78
Input Connector
Cable
Output Connection
Wired
Compliant with EN61347-2-13
EN61347-2-13
Isolation Class
Class 2
Certifications
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
Applications
LED Power Supply
Input Voltage VAC (Nominal)
110
220
Product Family
It appears that "XLG" is not a standard Italian word or phrase. Could you please provide more context or verify the text you want to be translated?
LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
5
MKP
YES
TK-CODE
25/0. [0.0.SI.]/LTT-5
25/0. [0.0.SI.]/LTT-5
51/0. [49.50.SI.]/LTT-3
55/0. [68.50.SI.]/LTT-3
69/0. [122.50.SI.]/LTT-3
76/0. [203.0.SI.]/LTT-3
