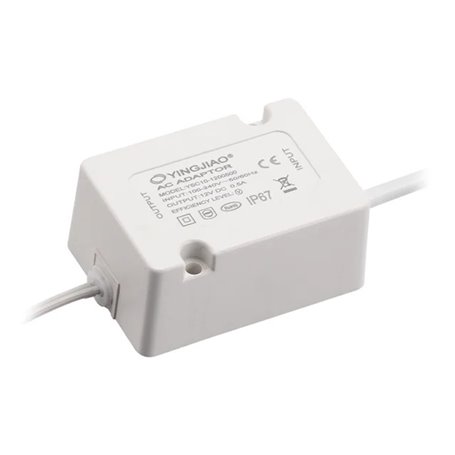

The product image may slightly differ as it is representative of the family and not the model.
YCL12 - LED Power Supply Yingjiao 12W - Constant Voltage CV - Slim - 12V/24V/36V/48V - IP67
Description
Features
- IP67 Certified
- Universal input: 100-240V - 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety standards: EN61347-1, EN61347-2-13, UL8750
- Inrush current 65A AC230V/50Hz
- High efficiency and low power consumption
- Protection from short circuit, overcurrent and overvoltage
- Protection from overheating
- 100% full load burn-in test
Input: 100-240VAC 50/60Hz;
Output Voltage: 12V, 24V, 36V, 48V
Rated Power: maximum 12W
Applications:
- LED Lighting
- Indoor LED Lighting
- Decorative LED Lighting
- Home Lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | YCL12-1201000 | YCL12-2400500 | YCL12-3600330 | YCL12-4800250 |
|---|---|---|---|---|
| Output Type | Constant Voltage | |||
| Output Voltage | 12V | 24V | 36V | 48V |
| Nominal Output Current | 1A | 0.5A | 0.330A | 0.250A |
| Power (Nominal) | 12W | |||
| Dimmable | NO | |||
| Max Efficiency | 77% | |||
| Input Voltage VAC | 100-240VAC 50/60Hz | |||
| Dimensions | 56*39*26mm | |||
See also:
Download the catalogs of LED power supplies in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
24
36
48 - Input Voltage VAC
- 100~240VAC
100~240VAC
200~240VAC
200~240VAC - Rating
- 453
- Power W
- 12
- IP Protection Grade
- IP67
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 77%
- Dimensions
- 56*39*26mm
- Output Current mA
- 250
330
500
1000 - Output Current A
- 0.5
0.25
0.33
1 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
