YSL100F-75 - Alimentatore LED Yingjiao 75W - Tensione Costante CV - Slim - 12V/24V
zoom_out_map
chevron_left chevron_right

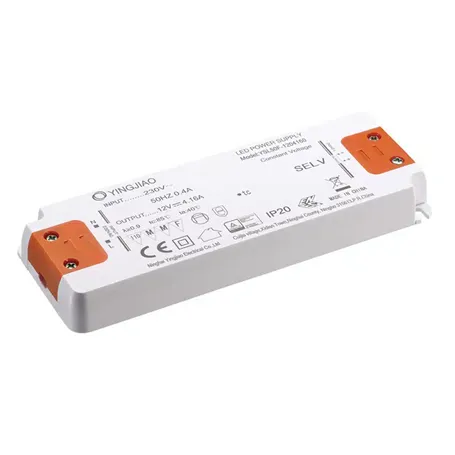

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

YSL100F-75 - LED Power Supply Yingjiao 75W - Constant Voltage CV - Slim - 12V/24V

€15.47 YSL100F-1206250
€16.17 YSL100F-2403125

€17.71 Tax excluded

€17.71 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €15.47 €15.47
5 €15.16 €75.80
10 €14.85 €148.51
20 €14.54 €290.84
Description

Features

  • Universal input: 90-265 VAC / 220-240V - 50-60Hz
  • Compliance RoHS
  • EMI Standard EN55015
  • Safety standard: EN61347-1, EN61347-2-13, UL8750
  • Inrush current 65A AC230V/50Hz
  • High efficiency and low power consumption
  • Protection from short circuit, overcurrent and overvoltage
  • Protection from overheating
  • 100% full load burn-in test

Input: 90-265VAC / 220-240VAC

Output Voltage: 12V, 24V

Rated Power: maximum 75W


Applications:

  • LED lighting
  • Indoor LED lighting
  • Decorative LED lighting
  • Home lighting

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main technical specifications

MODEL YSL100F-1206250 YSL100F-2403125
Output Type Constant Voltage
Output Voltage  12V 24V
Rated Output Current 6.25A 3.125A
Power (Rated) 75W
Dimmable NO
Max Efficiency 88%
Input Voltage VAC 90-265VAC / 220-240VAC
Dimensions 160*58*18mm

See also:

       Download the LED power supply catalogs in the attachments tab.

Data sheet
Yingjiao
YSL100F-1206250
New
7438645979727
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
Input Voltage VAC
90~264VAC
90~264VAC
220~240VAC
220~240VAC
Rating
453
Power W
75
IP Protection Grade
IP20
Mechanical Mounting Format
Closed Plastic Container
Efficiency
88%
Dimensions
160*58*18mm
Output Current mA
3125
6250
Output Current A
3.125
6.25
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
It appears that "YSL100F-75" is a product code or model number, which typically does not get translated as it is likely a specific identifier for an item. If you need further assistance with context or additional text in Italian for translation, please pr
