YSL100M-100 - Yingjiao 100W LED Power Supply - Constant Voltage CV - Slim - 12V/24V/36V/48V - IP44
zoom_out_map
chevron_left chevron_right

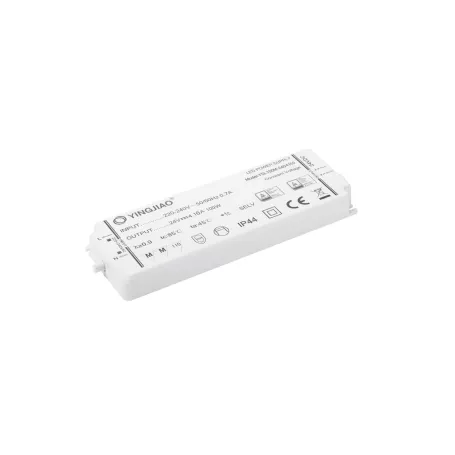

The product image may slightly differ as it is representative of the family and not the model.

YSL100M-100 - Yingjiao 100W LED Power Supply - Constant Voltage CV - Slim - 12V/24V/36V/48V - IP44

€17.85 YSL100M-1208330
€17.57 YSL100M-2404160
€23.94 YSL100M-3602770
€23.94 YSL100M-4802080

€20.51 Tax excluded

€20.51 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €17.85 €17.85
5 €17.49 €87.47
10 €17.14 €171.36
20 €16.78 €335.58
Description

Features

  • Certificate IP44
  • Universal input: 100-240V - 50/60Hz
  • Compliance RoHS
  • EMI Standard EN55015
  • Safety Standard: EN61347-1, EN61347-2-13, UL8750
  • Inrush current <65A AC230V/50Hz
  • High efficiency and low power consumption
  • Protection from short circuit, overcurrent and overvoltage
  • Protection from overheating
  • 100% full load burn-in test

Input: 100-240VAC 50/60Hz;

Output Voltage: 12V, 24V, 36V, 48V

Rated Power: maximum 100W


Applications:

  • LED Lighting
  • Indoor LED Lighting
  • Decorative LED Lighting
  • Home Lighting

Our Rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main Technical Specifications

MODEL YSL100M-1208330 YSL100M-2404160 YSL100M-3602770 YSL100M-4802080
Output Type Constant Voltage
Output Voltage 12V 24V 36V 48V
Rated Output Current 8.33A 4.16A 2.77A 2.08A
Power (Rated) 1000W
Dimmable NO
Max Efficiency 88%
Input Voltage VAC 100-240VAC 50/60Hz
Dimensions 158*51*18mm

See also:

Download the catalogs of LED power supplies in the attachments tab.

Data sheet
Yingjiao
YSL100M-1208330
New
0 Items
7438645980877
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
36
48
Input Voltage VAC
100~240VAC
100~240VAC
200~240VAC
200~240VAC
Rating
453
Power W
100
IP Protection Grade
IP44
Mechanical Mounting Format
Closed Plastic Container
Efficiency
88%
Dimensions
158*51*18mm
Output Current mA
2080
2770
4160
8330
Output Current A
2.08
2.77
4.16
8.33
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
Product Family
