YSL75T - Alimentatore LED Yingjiao 75W - Tensione Costante CV - Slim - 12V/24V/36V/48V
zoom_out_map
chevron_left chevron_right

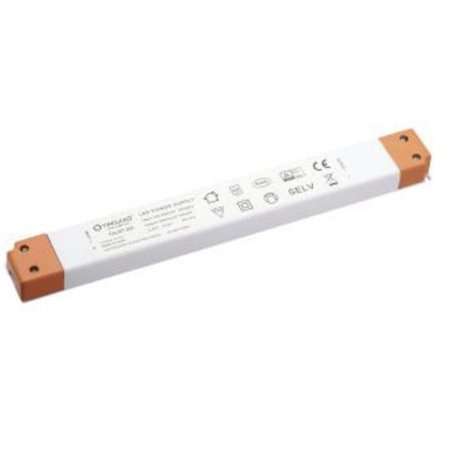

The product image may slightly differ as it is representative of the family and not the model.

YSL75T - LED Power Supply Yingjiao 75W - Constant Voltage CV - Slim - 12V/24V/36V/48V

€21.00 YSL75T-126250
€15.47 YSL75T-2403125
€27.02 YSL75T-3602080
€27.02 YSL75T-4801560

€21.00 Tax excluded

€21.00 Tax excluded

error_outline Product available with different options

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €21.00 €21.00
5 €20.58 €102.90
10 €20.16 €201.60
20 €19.74 €394.80
Description

Features

  • Universal input: 90-265V AC 50/60Hz
  • RoHS Compliance
  • EMI Standard EaN55015
  • Safety standards: EN61347-1, EN61347-2-13, UL8750
  • Inrush current 65A AC230V/50Hz
  • High efficiency and low energy consumption
  • Protection from short circuit, overcurrent and overvoltage
  • Protection from overheating
  • 100% full load burn-in test
  • Automatic restart after removal of fault conditions.

Input: 100-240V AC 50/60Hz; 200-240V AC 50Hz

Output Voltage: 12V, 24V, 36V, 48V DC

Rated Power: maximum 75W


Applications:

  • LED Lighting
  • Indoor LED Lighting
  • Decorative LED Lighting
  • Home Lighting

Our Rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡⚡
  • ⚡⚡⚡

Main Technical Specifications

MODEL YSL75T-126250 YSL75T-2403125 YSL75T-3602080 YSL75T-4801560
Output Type Constant Voltage
Output Voltage  12V 24V 36V 48V
Rated Output Current 6.25A 3.125A 2.08A 1.56A
Power (Rated) 75W
Dimmable NO
Max Efficiency 88%
Input Voltage VAC 100-240VAC/200-240VAC
Dimensions 305*30*17mm

See also:

       Download the catalogs of LED power supplies in the attachments tab.

Data sheet
Yingjiao
YSL75T-126250
New
0 Items
7438645980280
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
36
48
Input Voltage VAC
100~240VAC
100~240VAC
200~240VAC
200~240VAC
Rating
453
Power W
75
IP Protection Grade
IP20
Mechanical Mounting Format
Closed Plastic Container
Efficiency
88%
Dimensions
305*30*17mm
Output Current mA
1560
2080
3125
6250
Output Current A
1.56
2.08
3.125
6.25
Input Connector
At Speed
Output Connection
At Speed
Isolation Class
Class 2
Applications
LED Power Supply
Input Voltage VAC (Nominal)
220
