H.3528.60.1280  Strisce Led SMD 3528 60 Led/m - 1209 Lumen/m 12V - CRI80  Power-Supply  Strisce di LED
zoom_out_map
chevron_left chevron_right

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

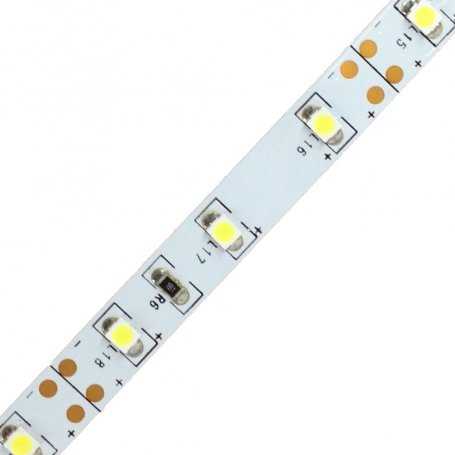

LED Strips SMD 3528 60 LED/m - 1209 Lumen/m 12V - CRI80

€7.56 3000K Warm White e IP65 e 12V
€5.95 3000K Warm White e IP20 e 12V
€5.95 4000K Natural White e IP20 e 12V
€1.96 4000K Natural White e IP65 e 12V
€5.95 6500K Cool White e IP20 e 12V
€7.56 6500K Cool White e IP65 e 12V
€2.52 Blue e IP20 e 12V
€2.52 Blue e IP65 e 12V

€5.95 Tax excluded

€5.95 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €5.95 €5.95
5 €5.83 €29.16
Description

Strip 60 LEDs/m 3528 SMD divisible every 5 cm, Power 13 W/m with luminous flux of 422 lumen/mt. Available color temperatures: 3000k Warm White 4000K Natural White 6500k Cool White PCB width 8mm CRI Ra+80

Our LED strips 3528 SMD with 60 LEDs/m are ideal for lighting cabinets or drawers.

Main features:

  • LED 3528 SMD
  • Power 13 W/m
  • 5 meter coil
  • Cuttable every 5 cm
  • 60 LEDs/m
  • Luminous flux 422 lumen/mt
  • Available in colors: 3000k Warm White 4000K Natural White 6500k Cool White
  • PCB width 8mm
  • Color rendering index Ra+80
  • IP20 IP65

Grado IP strip led su alimentatorishop

Applications:

  • Backlighting panels
  • Drawer and cabinet lighting

Our rating:

  • Reliability
  • Price
  • Features
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡
  • ⚡⚡⚡⚡

Main technical specifications

MODELWW30
Color temperature 3000°K
Power per meter 13 W/m
LED type 3528 SMD
LED per meter 60 LEDs/m
Lumen per Watt 90 lm/W
Color rendering index CRI Ra+80
Input voltage 12VDC
PCB width 8mm
Cutting length 5 cm
Coil length 5 meters
Available IP protections IP20 IP65

dati tecnici strip led 3528 60 led su alimentatorishop

See also:

Data sheet
H.3528.60.1280-WW30
New
6.55994E+11
LED Type
3528 SMD
Power Supply Type
Constant Voltage / CV
Input Voltage Volt
12
Available Temperatures
3000k Warm White
4000K Natural White
6500k Cool White
Operating Temperature
-4°F / 113°F
Rating
444
Power / m
13 W/m
Number of LEDs
60 LEDs/m
Cutting Length
5 cm
Lumen / m
422
LED Line
Single
PCB Width
8mm
IP Protection Grade
IP20
IP65
Luminous Flux
1209 Lumen Max
Efficiency LM/W
90 lm/W
IRC (Italian Red Cross)
Ra+80
Available Colors
Red Yellow Blue Green
