The product image may slightly differ as it is representative of the family and not the model.

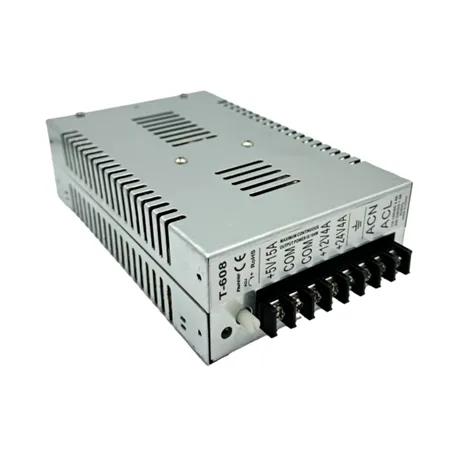

T-608 Gaming Switching Power Supply Hengwei - 104W three outputs
Description
Available Models: T-608
Main Features:
- Universal AC input / Full range
- Compact, high efficiency
- Protections: short circuit / overload
- Free air cooling
- 2-year warranty
Applications:
- Gaming
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
Main technical specifications
| MODEL | T-608 |
|---|---|
| Output DC Voltage | CH1: 5V - CH2: 12V - CH3: 24V |
| Rated current | CH1: 10A - CH2: 2A - CH3: 1.25A |
| Efficiency | 80% |
| Power Watt | 104W |
| Input VAC Voltage | 90 -132VAC / 180 - 264VAC via switch |
| Working temperature | -20°C - +60°C |
| Dimensions | 180*110*50mm |
View the datasheet for more details and for the technical characteristics of the models not indicated in the table.
Data sheet
- Output Voltage VDC
- 5
12
24 - Input Voltage VAC
- 90~132VAC / 180~264VAC
90~132VAC / 180~264VAC - Operating Temperature
- -4°F / +140°F
- Rating
- 545
- Power W
- 104
- Output Voltage Nr.
- 3
- Number of Ports
- 3
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 80%
- Dimensions
- 180*110*50mm
- Input Connector
- At Speed
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Gaming
