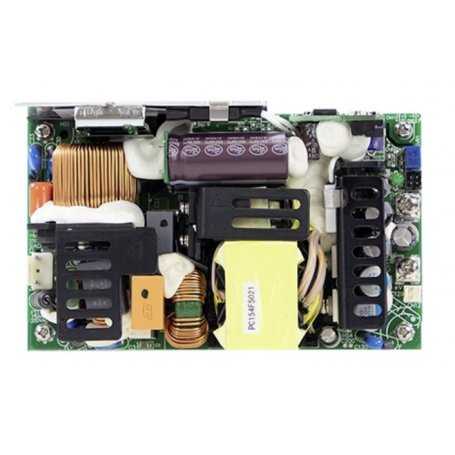

The product image may slightly differ as it is representative of the family and not the model.
EPP-500 AC/DC Power Supply Mean Well Open 500W Voltages 12V 15V 18V 24V 27V 36V 48V 54V
Description
Available models: EPP-500-12, EPP-500-15, EPP-500-18, EPP-500-24, EPP-500-27, EPP-500-27, EPP-500-36, EPP-500-48, EPP-500-54
The EPP-500 series offers 500W green PCB type power supplies with high power density on 5'' and 3''. It accepts 80-264 input and offers numerous output voltages from 12V up to 54V.
The series achieves 94% efficiency and extremely low power consumption without load. 0.5W. The series can be safely used in Class I systems (with FG) and Class II systems (without FG) and includes all protection systems. It is also compliant with safety rules such as TUV BS EN/EN62368-1, TUV BS EN/EN60335-1, UL62368-1 and IEC62368-1.
Perfect for various industrial applications.
Features:
- Compact dimensions 5''x3''
- Peak at 550W for 3 seconds
- EMI for Class I and Class II
- Working temperature range -30°C and 70°C
- No-load consumption equal to
- Efficiency up to 94%
- Protections: short circuit / OLP / OVP / OTP
- Output standby 5VDC; fan power supply 12VDC, power good and power fail sensors
- Works up to 5000m
- Power on indicator LED
- 3 years warranty
Applications:
- Industrial areas
- Mechanical and electrical sector
- PoE Power Supply
Our vote:
- Reliability
- Price
- Features
-
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Main technical specifications
| MODEL | EPP-500-12 | EPP-500-15 | EPP-500-18 | EPP-500-24 | EPP-500-27 | EPP-500-36 | EPP-500-48 | EPP-500-54 |
|---|---|---|---|---|---|---|---|---|
| Cool Mode | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Cool Mode | 25CFM | 25CFM | 25CFM | 25CFM | 25CFM | 25CFM | 25CFM | 25CFM |
| Output power (W) * -Air cooling | 320.4W | 319.5W | 320.4W | 321W | 321.3W | 320.4W | 321.6W | 320.2W |
| Output power (W) *- 25CFM | 499.2W | 499.5W | 500.4W | 499.2W | 499.5W | 500.4W | 499.2W | 500W |
| Nominal output voltage and current (Vo / Io) -Air cooling | 12V/26.7 | 15V/21.3 | 18V/17.8 | 24V/13.4 | 27V/11.9 | 36V/8.9 | 48V/6.7 | 54V/5.93 |
|
Nominal output voltage and current (Vo / Io) - 25CFM |
12V/41.6 | 15V/33.3 | 18V27.8 | 24V/20.8 | 27V/18.5 | 36V/13.9 | 48V/10.4 | 54V/9.26 |
|
Adjustable range of output voltage (V) |
11.4-12.6 | 14.3-15.8 | 17.1-18.9 | 22.8-25.2 | 25.6-28.4 | 34.2 - 37.8 | 45.6-50.4 | 51-56 |
| Efficiency at 230VAC (%) Type * |
91 | 92 | 92.5 | 93 | 93.5 | 94 | 94 | 94 |
| Dimensions | 127x76.2x41mm / 5"x3"x1.61" inch | |||||||
| PFC | YES | |||||||
| Certification | UL/CE (Pending) | |||||||
| For purchases and sampling | CONTACT US | |||||||
Data sheet
- Output Voltage VDC
- 12
15
18
24
27
36
48
54 - Input Voltage VAC
- 80~264VAC
80~264VAC - Operating Temperature
- -30°C / +70°C
- Rating
- 453
- Power W
- 500
- PFC
- Yes
- Mechanical Mounting Format
- Open Frame
- Efficiency
- 91%
92%
92.5%
93%
93.5%
94% - Dimensions
- 127X76.2X40 mm
- Output Current A
- 5.9
6.7
8.9
9.2
10.4
11.9
13.9
20.8
21.3
26.7
27.8
33.3
41.6 - Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- Industrial Automation
Security - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- EPP
