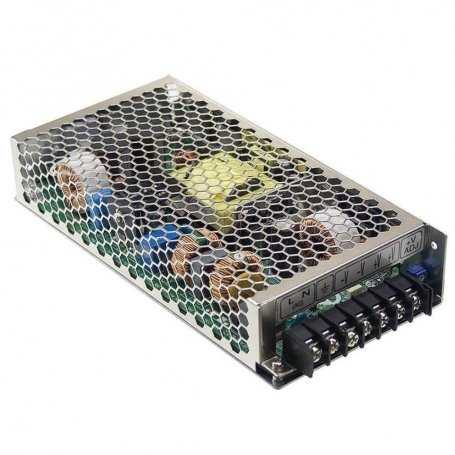

The product image may slightly differ as it is representative of the family and not the model.
HRP-200 - Power Supply Mean Well - Boxed 200W - Voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
Description
Mean Well Power Supply HRP-200 series, 200Watt power, output voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
The power supplies of the HRP-200 series from Mean Well are ac/dc power supplies in a closed metal enclosure with active PFC.
The power output is approximately 200W.
The entire product family of the HRP series is designed and certified for ITE applications, industrial automation, and telecommunications.
Features
- Universal AC input 85-264VAC / Full range
- Integrated active PFC function PF>0.95
- Resistant to 300VAC input surges for 5 seconds
- Protections: short circuit, overload, overvoltage, overtemperature
- Free air convection cooling
- 5 years warranty
- Dimensions: 199x98x38mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main technical specifications
| MODEL | HRP-200-3.3 | HRP-200-5 | HRP-200-7.5 | HRP-200-12 | HRP-200-15 | HRP-200-24 | HRP-200-36 | HRP-200-48 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | |||||||||||||||||||||||
| Nominal output current | 40A | 35A | 26.7A | 16.7A | 13.4A | 8.4A | 5.7A | 4.3A | |||||||||||||||||||||||
| Nominal output power | 132W | 175W | 200.3W | 200.4W | 201W | 201.6W | 205.2W | 206.4W | |||||||||||||||||||||||
| Efficiency | 80% | 84% | 86% | 88% | 88% | 88% | 89% | 89% | |||||||||||||||||||||||
| Input voltage | 85~264VAC | ||||||||||||||||||||||||||||||
| Working temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||||
| Dimensions | 199x98x38mm | ||||||||||||||||||||||||||||||
| Certification | CE, CB, EAC | ||||||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||||||
Also see:
Download the power supply catalogs in the attachments tab.
Find out more information about
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 3.3
5
7.5
12
15
24
36
48 - Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -40°C / +70°C
- Rating
- 453
- Power W
- 200
- PFC
- Yes
- Warranty
- 5 Years
- Mechanical Mounting Format
- Boxed - Frame Assembly
- Efficiency
- 89%
- Dimensions
- 199x98x38mm
- Output Current mA
- 4300
5700
8400
13400
16700
26700
35000
40000 - Output Current A
- 4.3
5.7
8.4
13.4
16.7
26.7
35
40 - Input Connector
- At Speed
- Output Connection
- At Speed
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- Electromedical
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in. - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help. Could you please provide the full text in Italian that you would like translated to English?
