HRP-600N - Alimentatore Mean Well - Boxato 600W - Tensioni 12V, 24V, 36V, 48V
zoom_out_map
chevron_left chevron_right

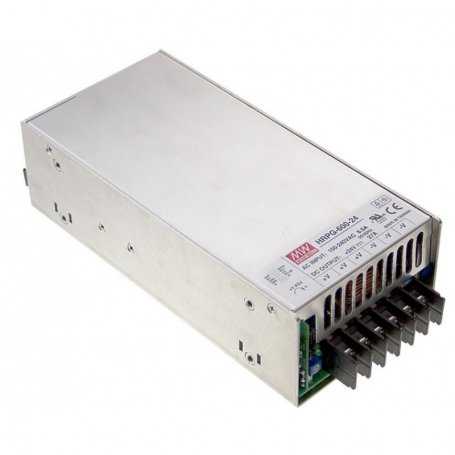

The product image may slightly differ as it is representative of the family and not the model.

Non disponibile - contattaci

HRP-600N - Power Supply Mean Well - Boxed 600W - Voltages 12V, 24V, 36V, 48V

€184.03 HRP-600N-12
€184.03 HRP-600N-24
€184.03 HRP-600N-36
€184.03 HRP-600N-48

€184.03 Tax excluded

€184.03 Tax excluded

block Non disponibile - contattaci

We will send you an email once the product becomes available. your email address will not be shared with anyone else.

Quantity Unit price Total price Buy
1 €184.03 €184.03
5 €180.35 €901.75
10 €176.67 €1,766.69
20 €172.99 €3,459.76
Description

End-Of-Life Model, contact us for an alternative!

Mean Well Power Supply HRP-600N series, 600W, output voltages 12V, 24V, 36V, 48V

The power supplies of the HRP-600N series from Mean Well are ac/dc power supplies in a closed metal case with active PFC.

The power output is approximately 600W, with a peak at 250% for 5 seconds. for applications such as motors and electromechanical loads that require a lot of power at startup.

Features

  • Integrated active PFC function PF>0.94
  • Resistant to input surges of 300VAC for 5 seconds
  • Protections: short circuit, overload, overvoltage, overtemperature
  • Integrated cooling fan ON-OFF control
  • Integrated DC OK signal
  • Integrated remote detection function
  • 5 year warranty
  • Dimensions: 218x105x61.5mm

Applications:

  • Industrial automation
  • Industrial control systems
  • Test or measurement systems
  • Telecommunication systems

Our Rating:

  • Reliability
  • Price
  • Features
    • ⚡⚡⚡⚡
    • ⚡⚡⚡⚡⚡
    • ⚡⚡⚡

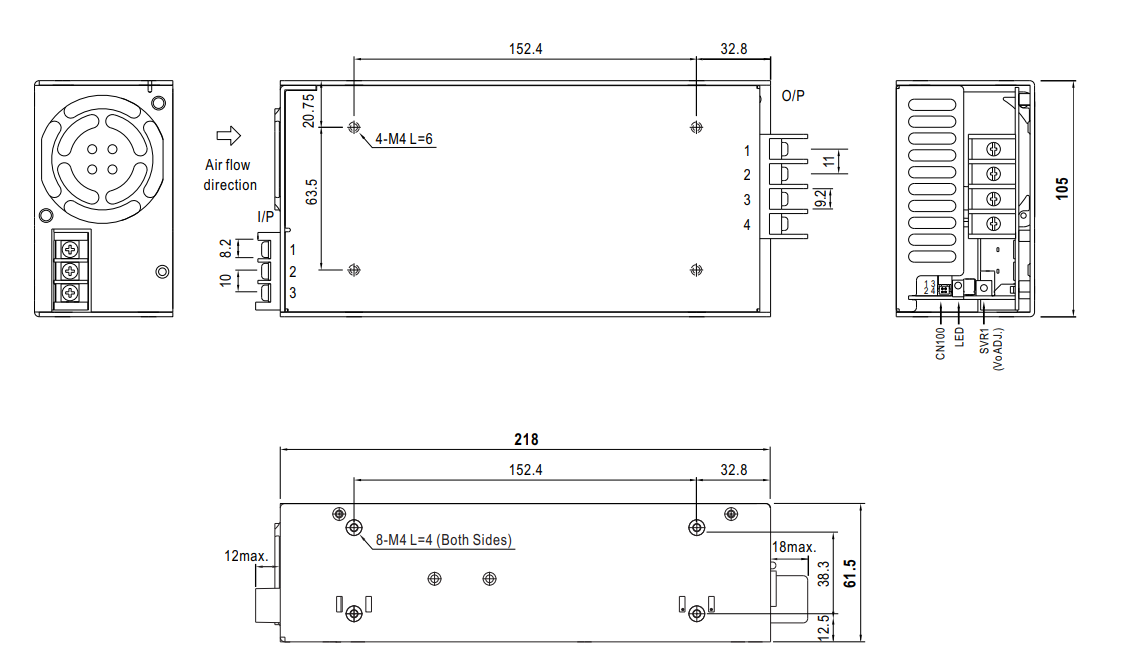

Mechanical Features



Main Technical Specifications

MODELHRP-600N-12HRP-600N-24HRP-600N-36HRP-600N-48
DC Output Voltage 12V 24V 36V 48V
Nominal Output Current 53A 27A 17.5A 13A
Nominal Output Power 636W 648W 630W 624W
Efficiency  88% 88% 89% 89%
Input Voltage 85~264VAC
Working Temperature -40 ~ +70 °C
PFC YES
Dimensions 218x105x61.5mm
Certification CE, CB, EAC
For purchases and samples CONTACT US

See also:

Download the power supply catalogs in the attachments tab.


Discover more information about

Data sheet
Mean Well
HRP-600N-12
New
Output Regulation Type
Constant Voltage / CV
Output Voltage VDC
12
24
36
48
Input Voltage VAC
85~264VAC
85~264VAC
Operating Temperature
-40°C / +70°C
Rating
453
Power W
600
PFC
Yes
Warranty
5 Years
Mechanical Mounting Format
Boxed - Frame Assembly
Efficiency
89.5%
Dimensions
218x105x61.5mm
Output Current mA
13000
17500
27000
53000
Output Current A
13
17.5
27
53
Input Connector
At Speed
Output Connection
At Speed
Certifications
