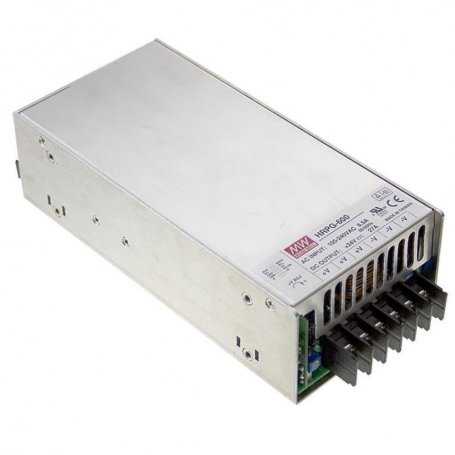

The product image may slightly differ as it is representative of the family and not the model.
HRPG-600 - Power Supply Mean Well - Boxed 600W - Voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
Mean Well Power Supply HRPG-600 series, power 600Watt, output voltages 3.3V, 5V, 7.5, 12V, 15V, 24V, 36V, 48V
The power supplies of the HRPG-600 series by Mean Well are ac/dc power supplies in a closed metal container with active PFC.
The power output is approximately 600W.
The entire product family of the HRPG series is designed and certified for ITE applications, industrial automation, and telecommunications.
Features
- Universal AC input 85-264VAC / Full range
- Built-in active PFC function PF>0.95
- Resistant to 300VAC input surges for 5 seconds
- Protections: short circuit, overload, overvoltage, overtemperature
- Built-in cooling fan ON-OFF control
- Built-in remote ON-OFF control
- Integrated remote detection function
- No-load power consumption
- Remote detection function
- Current sharing up to 2400 W (3+1) (24 V, 36 V, 48 V)
- 5-year warranty
- Dimensions: 218x105x63.5mm
Applications:
- Factory or automation control devices
- Industrial applications
- IT - Information Technology
Our rating:
- Reliability
- Price
- Features
- [[voto1]
- [[voto2]
- [[voto3]
Mechanical Features
Main technical specifications
MODEL | HRPG-600-3.3 | HRPG-600-5 | HRPG-600-7.5 | HRPG-600-12 | HRPG-600-15 | HRPG-600-24 | HRPG-600-36 | HRPG-600-48 | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DC output voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V | |||||||||||||||||||||||
Nominal output current | 120A | 120A | 80A | 53A | 43A | 27A | 17.5A | 13A | |||||||||||||||||||||||
Nominal output power | 396W | 600W | 600W | 636W | 645W | 648W | 630W | 624W | |||||||||||||||||||||||
Efficiency | 78.5% | 82% | 86% | 88% | 88% | 88% | 89% | 89% | |||||||||||||||||||||||
Input voltage | 85~264VAC | ||||||||||||||||||||||||||||||
Working temperature | -40 ~ +70 °C | ||||||||||||||||||||||||||||||
PFC | YES | ||||||||||||||||||||||||||||||
Dimensions | 218x105x63.5mm | ||||||||||||||||||||||||||||||
Certification | CE, CB, EAC | ||||||||||||||||||||||||||||||
For purchases and samples | CONTACT US |
