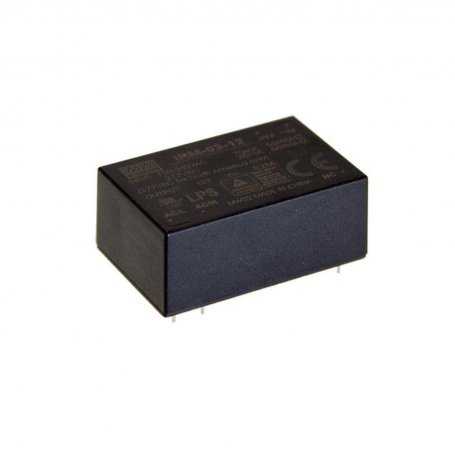

IRM-03-12S - Meanwell - Encapsulated power supply 3W 12V - Input 100-240 VAC
Description
- MeanWell Power Supply
- Input: 85~305VAC
- Power 3W
- Output: 12Vdc 250mA
- SMD style
- MeanWell power supply
- Input: 85~305VAC
- Power: 3W
- Output: 12Vdc 250mA
- Class II
- IP20
- Compact body
- Protections: Short circuit / Overload / Overvoltage
- Low cost, High reliability
- Warranty: 3 years
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 12
- Input Voltage VAC
- 85~305VAC
85~305VAC - Operating Temperature
- -30°C / +70°C
- Power W
- 3
- PFC
- No
- Output Voltage Nr.
- 1
- IP Protection Grade
- IP20
- Warranty
- 3 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 78%
- Dimensions
- 37 x 24 x 16 mm
- Output Current mA
- 250
- Output Current A
- 0.25
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220 - Product Family
- MRI
- LTT is an abbreviation or acronym that may not have a direct translation without context. It may stand for a company name, a tec
- 5
- MKP
- YES
- TK-CODE
- 13/0. [0.50.NO.]/LTT-5
- List Price
- 10.2
